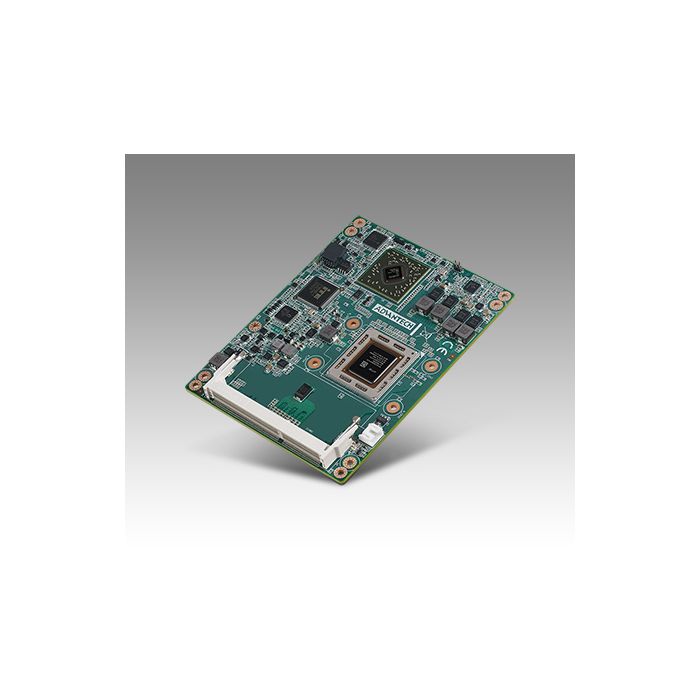

2nd Gen AMD embedded R-Series APU COM Express Basic Module
COM Express Basic Type 6 provides triple DDI display interfaces, HDA, abundant super speed I/Os and high bandwidth expansion interfaces such as USB3.1, SATAIII and PEG/PCIe gen3. It comes with excellent computing and graphics performance.
For other specifications and customisation options, please see datasheet
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Form Factor | COM Express Basic Module |
| Sub Category | Type 6 |
| Supply Voltage |
Vin: 8.5 (9-5%) ~ 20V (18+10%)
VSB: 5V±5% RTC Battery: 2.0-3.3V |
| CPU | RX-427BB |
| Frequency | 1600 MHz |
| USB 3.0 | 4 Ports |
| USB 2.0 | 8 Ports |
| COM Port | 2 Ports (2-Wire) |
| Graphics Controller | AMD Radeon HD9000 GPU |
| Audio | HD Audio |
| Pin Out Type | COM Express R2.1 Type 6 |
| Base Frequency | 2.7 GHz |
| Max Single Core Turbo Frequency | 3.6 GHz |
| Core/Thread | Quad Core |
| LLC | 4 MB |
| CPU TDP | 35W |
| System Chipset | A77E |
| BIOS | AMI UEFI 64Mbit |
| EEC Support | non-ECC |
| Max Memory Capacity | Up to 16GB |
| Memory Socket | Dual Channel 204P SODIMM |
| VGA | Up to 1920 x 1200 |
| LCD | Single and dual channel 18/24-bit LVDS, up to 1920 x 1200 |
| Multiple Display | Up to Quad Displays. Support any combinations of VGA, LVDS and DDI (HDMI with audio only support 1 port) |
| PCI Express x16 |
1 Port
Quad Core support PCI Express x16 Gen3 (8.0GT/s) Dual Core support PCI Express x8 Gen2 (5.0GT/s) |
| PCI Express x1 |
7 Ports support PCI Express Gen 2 (5.0 GT/s), support x4 and x2 configurations
Up to 8 Ports when remove LAN |
| LPC | Yes |
| SMBus | Yes |
| I²C Bus | Support 100Kb/s and 400Kb/s devices. Both master by default, and slave modes are supported optionally |
| Gigabit Ethernet |
Controller: Intel I211AT
Speed: 10/100/1000 Mbps |
| SATA | 4 ports support SATA III 6.0Gb/s |
| SPI Bus | Yes |
| GPIO | 8-bit GPIO |
| SDIO | SDHC Class 10, capacity range 4 to 32 GB, 1 and 4-bit modes |
| Express Card | 2 Ports |
| TPM | TPM1.2 (Optional) |
| Smart Fan | 2 Ports; 1 Port on COM Module. Support 12V Fan, 1 Port on Carrier Board |
| Power Type | ATX: Vin, VSB, AT: Vin |
| Power Consumption (Max) | 7.1A ; RMS 3.3A |
| Power Consumption (Idle) | 1.4A |
| Graphics Frequency | 686MHz |
| Graphics Memory | Up to 1GB frame buffer |
| DDI | 2 DDI ports support configurable HDMI/DVI/DP, up to 4096 x 2160. Up to 3 ports configured via PCIe x16 |
| 2D/3D/HW Acceleration |
DX11, OpenGL 4.2, OpenCL 1.2
UVD4.2 (H.264, MPEG-2, VC-1, MPEG-4 (DivX), and WMV) Decode VCE2.0 (Videoconferencing, wireless displayy technology1. H.264, SVC) Encode |
| Storage Temperature | -40 ~ 85° C (-40 ~ 185° F) |
| Operating Temperature | 0 ~ 60° C (32 ~ 140° F) |
| Memory | DDR3L |
| Watchdog | 65536 level, 0 ~ 65535 sec |
| Product Type | COM Express Basic |
| Humidity |
Operating: 40 °C @ 95% relative humidity, non-condensing
Storage: 60 °C @ 95% relative humidity, non-condensing |
| Dimensions | 125 x 95 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
