SOM-DK3569
SOM-DK3569
Advantech

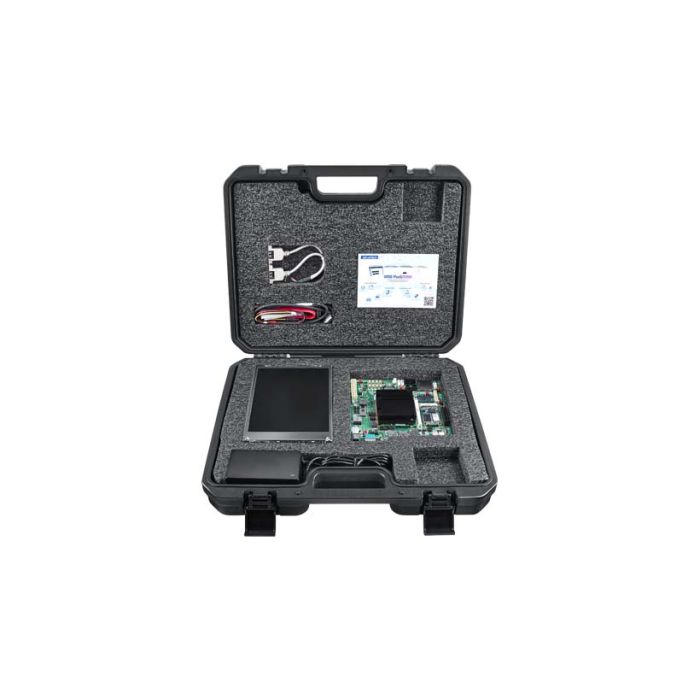

Starter kit of Qseven R2.1, with SOM-3569
Advantech X86 evaluation kits provide a complete set of COM, development board and peripheral, customers can do quick start for their system design.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Form Factor | SOM-3569, Qseven R2.1 |
| Supply Voltage |
Vin: 5V±5%
VSB: 5V±5% RTC Battery: 2.0-3.3V |
| CPU | Intel Atom E3950 |
| USB 3.0 | 1 Port (up to 2 Ports by BOM option) |
| USB 2.0 | 8 Ports |
| COM Port | 2 Ports. 4-wire COM 2 Ports; optional mux with GPIO 8-bit |
| Graphics Controller | Intel HD GraphicsIntel HD Graphics |
| Core/Thread | 4 Cores |
| CPU TDP | 12W |
| Max Memory Capacity | 4GB |
| LCD | Panel: 8.4" LVDS PANEL 450N 800X600(G) |
| Multiple Display | Support Dual channel LVDS 18/24-bit (eDP optional), DP (HDMI/DVI optional) |
| PCI Express x1 | 4 PCIex1 |
| LPC | Yes |
| SMBus | Yes |
| I²C Bus | Yes |
| CAN Bus | Yes |
| Gigabit Ethernet |
Controller: Intel i211AT
Speed: 10/100/1000 Mbps |
| SATA | 2 Ports. Support Gen3.1 (6Gb/s) and Gen2 (3 Gb/s) or Gen 1(1.5 Gb/s) |
| USB Client | N/A (up to 1 Port by BOM option) |
| SPI Bus | 1 Socket. Support SPI BIOS EEPROM |
| SDIO | 1 Socket. Support SD 3.1 |
| TPM | Yes |
| Smart Fan | 1 Port |
| Power Type | ATX: Vin, VSB, AT: Vin |
| Storage Temperature | -40 ~ 85° C (-40 ~ 185° F) |
| Operating Temperature | 0 ~ 60° C (32 ~ 140° F) |
| Memory | LPDDR4 |
| Product Type | Evaluation Kit |
| Humidity |
Operating: 40 °C @ 95% relative humidity, non-condensing
Storage: 60 °C @ 95% relative humidity, non-condensing |
| Dimensions | 170 x 170 mm for Carrier Board 70 x 70 mm for SOM-3569 module |
