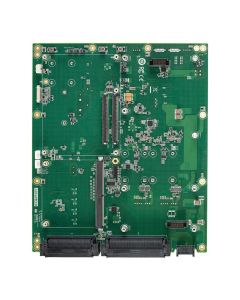

9th/8th Gen Intel Xeon/Core Processors COM Express Basic Module Type 6
COM Express Basic Type 6 provides triple DDI display interfaces, HDA, abundant super speed I/Os and high bandwidth expansion interfaces such as USB3.1, SATAIII and PEG/PCIe gen3. It comes with excellent computing and graphics performance.
For other specifications and customisation options, please see datasheet
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Form Factor | COM Express Basic Module |
| Sub Category | Type 6 |
| Supply Voltage |
Vin: 8.5V ~ 20V
VSB: 4.75V ~ 5.25 V RTC Battery: 2.0V ~ 3.3V |
| USB 3.1 Gen 2 (type A) | 4.0000 |
| CPU | E-2276ME |
| Frequency | 2400 MHz |
| USB 2.0 | 8 Ports (480Mbps) |
| COM Port | 2 Ports (2-Wire) |
| Graphics Controller | Intel UHD Graphics 610/630/P630 |
| Audio | Intel HD Audio Interface |
| Pin Out Type | COM Express R3.0 Type 6 pin out |
| Base Frequency | 2.8 GHz |
| Max Single Core Turbo Frequency | 4.5 GHz |
| Core/Thread | 6 |
| LLC | 12 MB |
| CPU TDP | 45W |
| BIOS | AMI UEFI 256Mbit |
| EEC Support | ECC is supported with specific SKU |
| Max Memory Capacity | 96GB |
| Memory Socket | 3 260P SO-DIMM: 2 on front side (channel 0&1) / 1 on rear side (channel 0) |
| VGA | 1920 x 1200 @ 60 Hz |
| LCD | LVDS dual channel: 1920 x 1200@60Hz (option support eDP 4096 x 2304@60Hz, 24bpp) |
| Multiple Display | Triple displays with each display combinations |
| PCI Express x16 | 1 PCIe x16 configurable to 1 x16, 2 x8, 1 x8 + 2 x4 |
| PCI Express x1 | 8 PCIe x1, configurable to x4 or x2 |
| LPC | Yes |
| SMBus | Yes |
| I²C Bus | Yes |
| CAN Bus | Yes (Optional, co-layout with COM2) |
| Gigabit Ethernet |
Controller: Intel I219
Speed: 10/100/1000 Mbps |
| SATA3.0 | 4 Ports (6Gbps) |
| SPI Bus | Yes |
| GPIO | 8 bits (Option support SD Card) |
| TPM | TPM2.0 (Infineon SLB9665) |
| Smart Fan | 2 Ports: 1 port on COM module (Notice: the input voltage of fan is aligned to Vin); 1 port on carrier board |
| Power Type | ATX: Vin, VSB; AT: Vin |
| Power Consumption (Max) | 44.63W @ 12V (i7-8850H with 48GB DDR4 2400) |
| Power Consumption (Idle) | 6.89W @ 12V (i7-8850H with 48GB DDR4 2400) |
| Vibration Resistance | 3.5 Grms |
| Graphics Frequency | 1.15GHz |
| Graphics Memory | Shared Memory |
| DDI |
3 DDI ports support configurable HDMI/DVI/DisplayPort
|
| 2D/3D/HW Acceleration |
HW Encode: MPEG2, AVC/H264, VP8, JPEG, HEVC/H265, VP9
HW Decode: MPEG2, VC1/WMV9, AVC/H264, VP8, JPEG/MJPEG, JPEG/MJPEG, HEVC/H265 (10 bits & 8 bits), VP9 |
| Storage Temperature | -40 ~ 85° C (-40 ~ 185° F) |
| Operating Temperature |
Standard: 0 ~ 60 °C (32 ~ 140 °F)
Extend: -40 ~ 85 °C (-40 ~ 185 °F) |
| Memory | DDR4 |
| Watchdog | 65536 level, 0~65535 sec |
| Product Type | COM Express Basic |
| Humidity |
Operating: 40 °C @ 95% relative humidity, non-condensing
Storage: 60 °C @ 95% relative humidity, non-condensing |
| Dimensions | 125 x 95 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
