ST-1612-T

ST-1612-T

LOCOSYS Technology

Timing module that can simultaneously acquire and track multiple satellite constellations that include GPS, GLONASS, GALILEO and QZSS

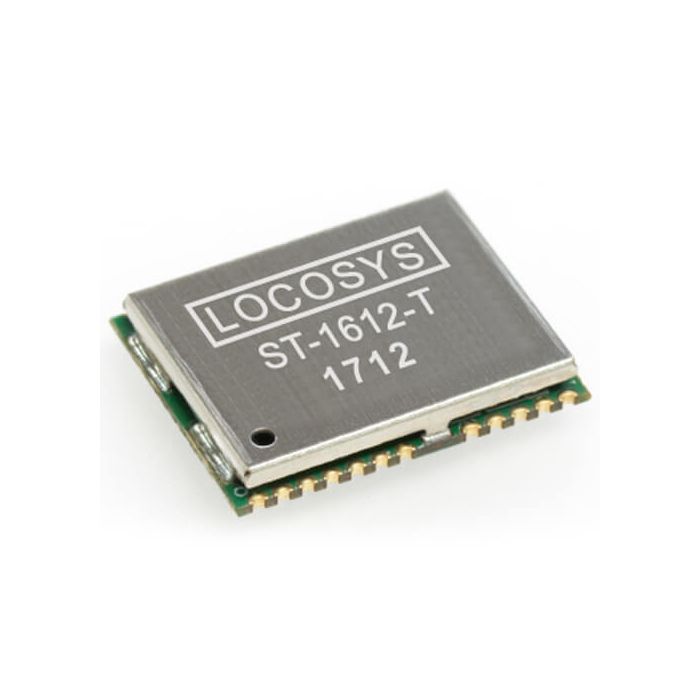

main product photo

The LOCOSYS ST-1612-T has timing features of the T-RAIM algorithm and position hold auto survey mode. 1PPS output is available with only one visible satellite. Its precision GNSS timing is suitable for applications such as communication base stations and electrical power grids.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Key Features
  • Supports GPS and GLONASS
  • Capable of SBAS (WAAS, EGNOS, MSAS)
  • 32 tracking channels and 2 fast acquisition channels
  • T-RAIM provides high PPS integrity
  • Position hold auto survey mode
  • GNSS raw data is available (by request)
  • Support interface of UART, USB and CAN bus
  • Operation temperature range: -40°C to 85°C
  • Small form factor 16 x 12.2 x 2.2 mm
  • SMD type with stamp holes; RoHS compliant
Input Voltage 3.0V - 3.6V
Satellite Systems
  • GPS
  • GLONASs
  • GALILEO
  • QZSS
Power (mA) 38mA
VB (uA) 69uA
Operating Temperature -40 ~ 85°C
Interface
  • UART
  • CAN BUS
  • USB
Dimensions 16 x 12.2 x 2.2 mm
More Information
Attribute Value
Data Sheet Click here to view
