ST-1612i-BT
ST-1612i-BT
LOCOSYS Technology
Timing module that can simultaneously acquire and track multiple satellite constellations including GPS, BEIDOU, GLONASS, GALILEO and QZSS

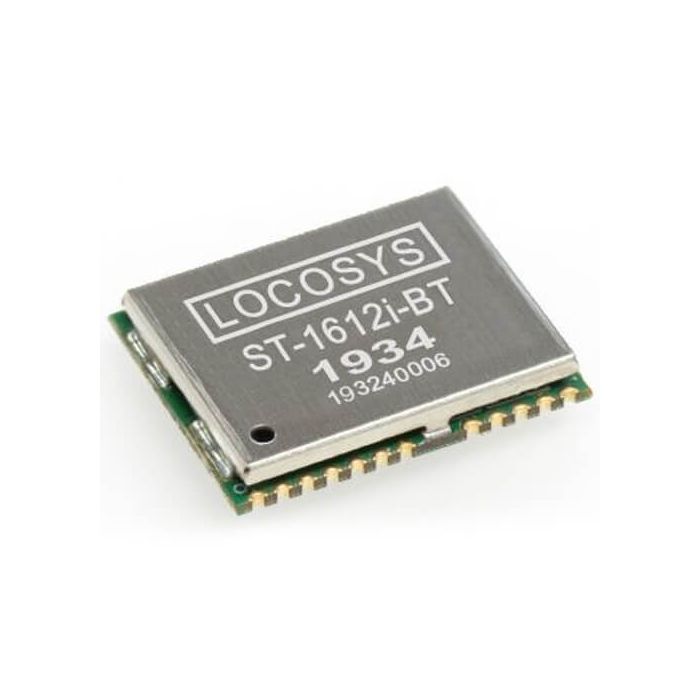

The LOCOSYS ST-1612i-BT timing module can simultaneously acquire and track multiple satellite constellations that include GPS, BEIDOU, GLONASS, GALILEO and QZSS. The ST-1612i-BT features accurate PPS for timing applications. It has T-RAIM algorithm and position hold auto survey mode. A 1PPS output is available with only one visible satellite. Its precision GNSS timing is suitable for radio base stations, femtocell and smart grid applications.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Input Voltage | 3.0V - 3.6V |
| Satellite Systems |
|
| Power (mA) | 69mA |
| VB (uA) | 8uA |
| Operating Temperature | -40 ~ 85°C |
| Interface |
|
| Dimensions | 16 x 12.2 x 2.4 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
