Hioki
Discharge Detection Upgrade for ST4030A Impulse Winding Tester
Optional function for the ST4030A Impulse Winding Tester to detect microscopic partial discharges obscured by noise. Detect pseudo-shorts with high accuracy
The ST9000 Discharge Detection Upgrade for the Impulse Winding Tester ST4030A provides detection enhancements to spot discharge that is buried in noise.
Key Features
- Option additional function for ST4030A

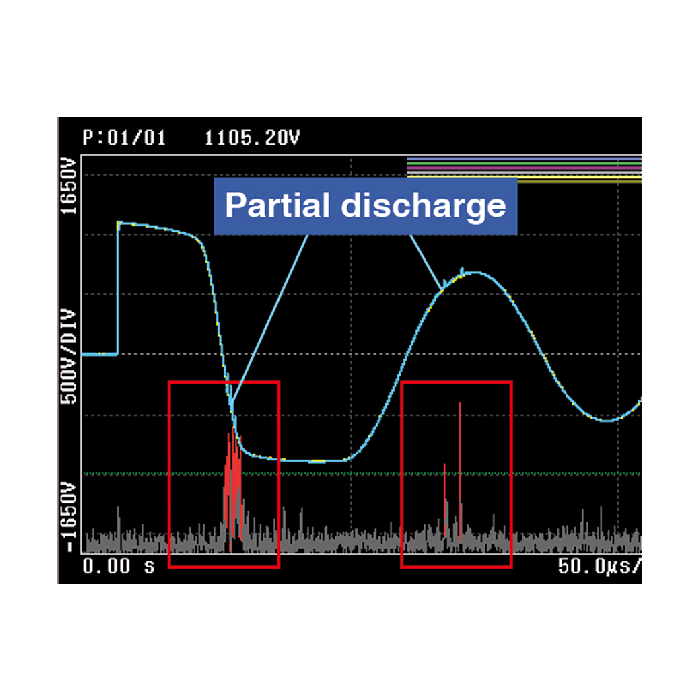

- Detect microscopic partial discharges obscured by noise to determine defective insulation (pseudo-shorts)
- Hioki original filter (*1)
- Compatible with Hioki ST4030A
*1: Noise components within the high frequency components appearing within the entire response waveform are removed to extract only the partial discharge component in order to make a pass/fail determination. Jointly developed with Aisin AW Co., Ltd.
Buy Online
| Attribute | Value |
|---|---|
| Lead Time |
Usually available in 5-7 weeks |
| Measurement Items | Determine discharge |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
