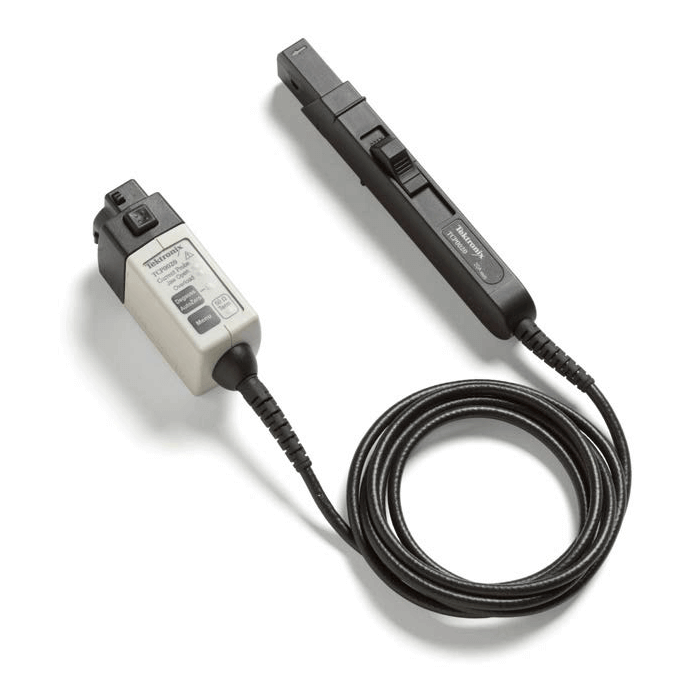

TCP2020
TCP2020
Tektronix
AC/DC current probe
The TCP2020 is a high-performance, easy-to-use AC/DC current probe designed for use with a variety of oscilloscopes. The TCP2020 is designed for use with any instrument with BNC inputs and >100 kΩ input termination.
These AC/DC current probes provide sufficient performance to support 50 MHz measurement system bandwidth. The TCP2020 provides a maximum 20 ARMS measurement range. These probes also provide excellent accuracy to current levels as low as 10 mA, important for meeting today’s challenging current measurement needs.
Tektronix TCP2020 Highlights
- 20 ARMS maximum current capability
- 100 A peak pulse current capability
- 10 mA/mV sensitivity
- BNC output connects to most oscilloscopes and other measurement equipment (>100 kΩ termination required)
- Degauss button and thumbwheel for DC offset adjustment
- Powered by an AC adapter
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | Current_Probes |
| Product Family | Current Probes |
| Key Features |
|
| Bandwidth | 3 Hz to 300 kHz |
| Whats Included |
|
| Applications |
|
| Rise Time | ≤7 ns |
| Cable Length | 2 |
| Accessory Type | Current Probes |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
