TCP303
TCP303
Tektronix

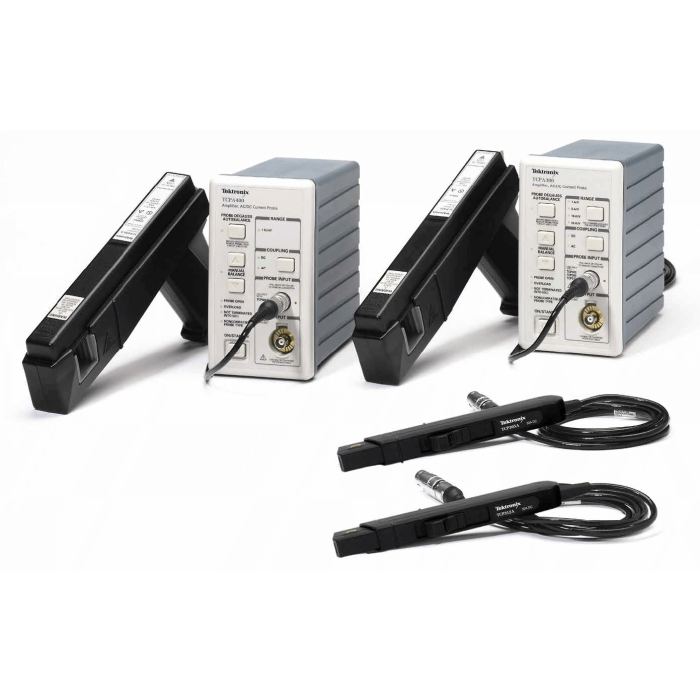

AC/DC current, DC to 15 MHz; 150 A DC (Requires TCPA300 amplifier)
Meets today's AC/DC current measurement applications
The Tektronix AC/DC Current Measurement Systems provide a wide range of current measurement capabilities and span the gap between low-level milliamp measurements to very high current levels. Higher-frequency performance is available with the TCPA400 w/TCPA300 providing ≥100 MHz bandwidth and a maximum current of 30 A DC.
Measurement errors and manual calculations are now a thing of the past
With the Tektronix TCPA303, automatic control and on-screen scaling and units are provided for users of Tektronix TDS3000, TDS500, TDS600, TDS700, TDS5000, TDS6000, and TDS7000B series oscilloscope systems (the DPO3000, MDO/MSO/DPO4000, MSO/DPO5000, and DPO7000 series oscilloscopes, the TPA-BNC adapter is required).
The TCP300/TCP400 current measurement systems seamlessly integrate with your TDS series oscilloscope.
Even non-TEKPROBE systems can use the TCPA300/400 series to make proper current measurements by simply multiplying the measured output voltage on the oscilloscope by the TCPA300/400 series range setting.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | Current_Probes |
| Product Family | Current Probes |
| Key Features |
|
| Bandwidth | 15 MHz |
| Applications |
|
| Rise Time | < 23 ns |
| Accessory Type | Probe |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
