2233-B

Programmable Video Pattern Generator

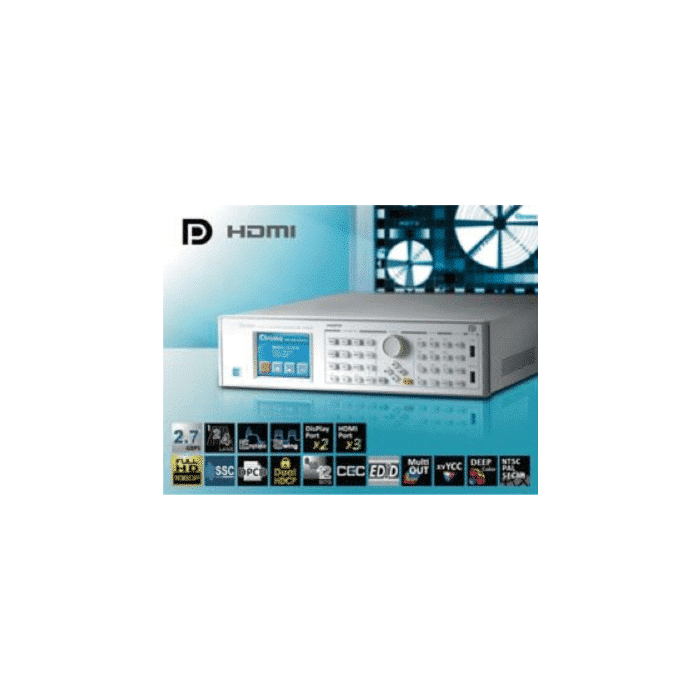

The Chroma 2233-B Programmable Video Pattern Generator is a multi-function measurement equipment. Combining Analog / DVI / HDMI / DisplayPort / SDTV / HDTV signals with high-resolution test quality and multiple output support, it is capable of providing a complete test solution to customers.

For the digital signal of TMDS output, the pixel rate is up to 330MHz with resolution supporting above UXGA. Moreover, for the higher frequency test application, Chroma 2233-B supports DVI Dual HDCP for 2 Link DVI transmissions.

As large-scale and high-definition have become the trend for the video industry, the Chroma 2233-B supports the up-to-date high-resolution multimedia digital video transmission interface, HDMI V1.3 is able to provide higher speed bandwidth and colour depth. It supports 24,30,36 bits (RGB or YCbCr) and new colour standard xvYCC, sYCC, Adobe RGB, and Adobe YCC(CEA-861E) to get real natural colour and high resolution image.

Key Features:

• – HDMI port output x 3
  – DisplayPort port output x 2
  – SCRAT port (output x 1 / input x 1)
• DisplayPort V1.1a pixel rate 270MHz
• DisplayPort with HDCP V1.3 support
• Support Automatically & Manually setting for DisplayPort function
  – 2 Link rate (1.62/2.7Gbps) selectable
  – 1, 2, 4 Video lane selectable
  – 0/3.5/6/9.5dB pre-emphasis selectable
  – 400/600/800/1200mV Swing level selectable
• HDMI V1.3C (with 24,30,36bit deep colour / xvYCC / CEC / Lip Sync function)
• DVI pixel rate 330MHz
• Support DVI Dual HDCP test application
• DVI & HDMI DisplayPort with HDCP output
• Y,Pb,Pr / Y,Cb,Cr / Y,R-Y, B-Y output
• S-Video / CVBS / SCART / RGB / Colour Component / D-terminal output
• NTSC / PAL / SECAM TV signal
• EDID Read / Write / Compare
• Easy and variable pattern edit
• HDMI/DVI Plug & Play function
• Power saving mode support
• USB Host / Device
