Keithley 2110-220 5.5 Digit USB DMM (220V)

2110-220

Keithley Instruments

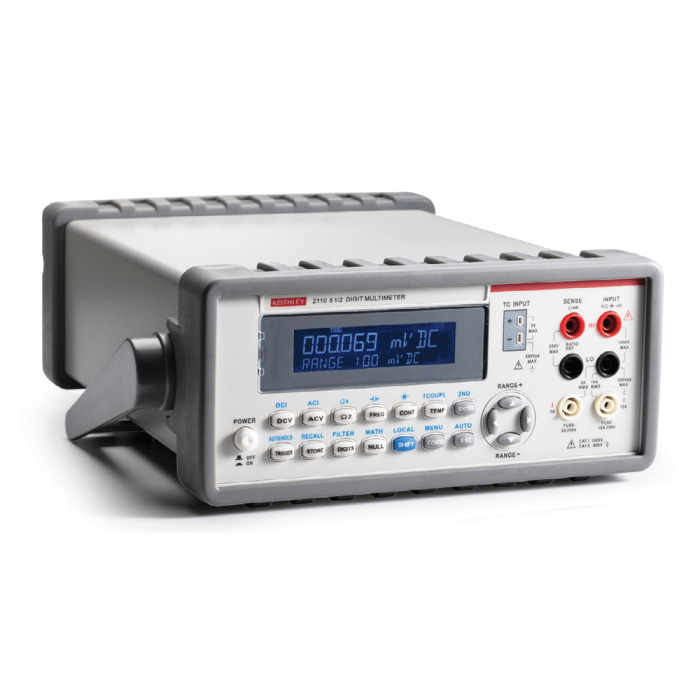

Keithley 5.5 Digit USB Digital Multimeter (220V)

Skip to the beginning of the images gallery

The 2110-220 5.5 Digit Dual-Display Digital Multimeter combines a compelling price with a comprehensive set of capabilities, superior measurement accuracy, and high speed for a broad range of applications. The Keithley 2110-220 features 15 measurement functions and 7 math functions and has dual-line display capability, which allows it to display two different measurements concurrently. The Keithley 2110-220 is an unbeatable value for production, R&D, and test engineers, scientists, and students making a wide variety of measurements in portable, bench, and system applications.

High Accuracy, Abundant Capabilities, Low Cost

The 2110-220 provides precision and a rich set of capabilities at a value price. It has 0.012% one-year basic DC voltage accuracy and 0.020% one-year basic resistance accuracy up to the 100 kΩ range.

Speed

At 5.5 digits, the Keithley 2110 delivers up to 200 readings/s via the USB remote
interface. At the fast 4½-digit setting, it reads up to 50,000 readings/s and up to 30,000 readings/s into the buffer, making it ideal for production and monitoring applications in which speed is critical.

Simplicity

The Keithley 2110-220 is operational and intuitive to use right out of the box. The functions on the front panel are user-friendly and easy to read. It's KITool and KI-Link software allows users to quickly control the instrument over USB, record measurements and display time-series plots of the data. Its LabView® and IVI drivers give more-advanced customers even more control over the instrument. The TMC-compliant USB remote interface allows easy re-use of existing SCPI programs.

Contact our team for stock availability and product options.

Price £723.00

Request a quote

Specifications

2110-220 Specifications

High accuracy and high speed for general-purpose measurements
15 measurement functions, including capacitance and thermocouple measurements
Dual-line display allows concurrent measurements
TMC-compliant USB 2.0 interface for use with SCPI test commands
GPIB option for use in system applications
Includes PC software utilities for graphing and data sharing in both Microsoft^® Word and Excel
Rugged construction for durability in bench/portable applications
Includes all accessories, such as start-up software, USB cable, power cable, and safety test leads
CE compliant and UL listed

More Information
Attribute	Value
Key Features	DC voltage: 0.1 V, 1 V, 10 V, 100 V, and 1000 V AC voltage: 0.1 V, 1 V, 10 V, 100 V, and 750 V DC current: 10 A, 100 A, 1 A, 3 A, and 10 A AC current: 1 A, 3 A, and 10 A Two- and four-wire resistance: 100 Ω, 1 kΩ, 10 kΩ, 100 kΩ, 1 MΩ, 10 MΩ, and 100 MΩ Frequency: From 10 Hz to 300 kHz Capacitance measurement: 1 nF, 10 nF, 100 nF, 1µF, 10 µF, 100 µF Thermocouple measurement: J-, R-, S-, T-, E-, N-, B-, C-, and K-type thermocouples Temperature (RTD and NTC Thermistor) measurements Diode measurement Continuity test Programmable A-D converter and filter settings for signal-to-noise optimization. Additionally, seven mathematical operations can be performed on measurement readings: percentage, average, min/ max, NULL, limits, mX+b, dB, and dBm testing.
Applications	Manual, semi-automatic, and automatic testing of low-cost electronic devices, circuits, modules, electrical components, and semiconductor components.
Display	LCD 2 line
Connectivity	USB (TMC)
Maximum DC Current
Digits
Maximum AC Current
Maximum AC Voltage
Whats Included	Reference Manual on CD, Specifications, LabVIEW® Driver, Keithley I/O Layer, USB Cable, Power Cable, Safety Test Leads, KI-Tool, and KI-Link Add-in (both Microsoft Word and Excel versions), Calibration Certificate
Product Type
Basic DCV Accuracy
