ETS-Lindgren

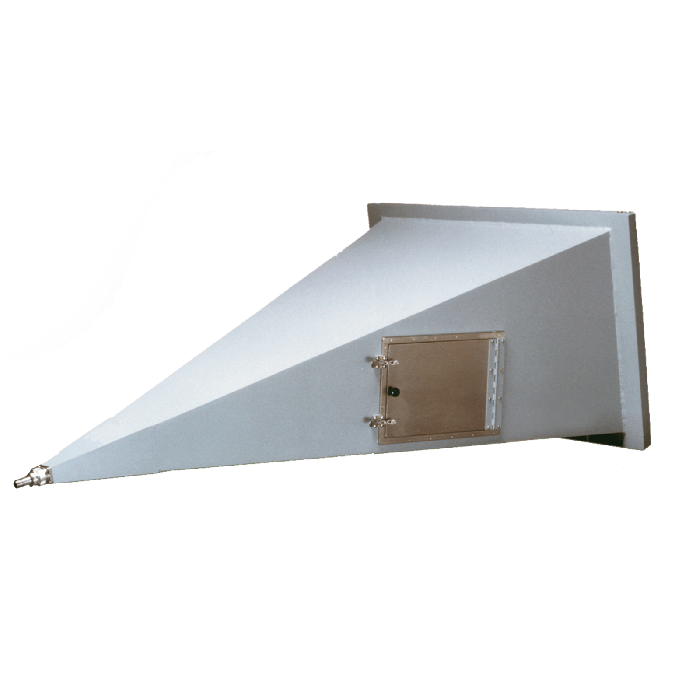

250mm GTEM (Gigahertz Transverse Electromagnetic) Cell for Radiated Immunity and Emissions Testing
250mm Septum GTEM Cell
The Model 5402 GTEM! Test Cells enables users to perform radiated emissions and radiated immunity tests in less time than either an OATS or in a chamber. Beginning with design qualification testing and moving through to pre-compliance testing, full compliance testing, and production sampling, the 5402 GTEM! Test Cell is a time saving device for your test lab. A typical radiated emissions test (10,000 point scan) can be completed in 15 minutes or less, while a typical radiated immunity test can usually be completed in half the normal time.
The GTEM 5402 is the smallest member of the GTEM family with a septum that is comparable in height with many standard TEM cells. This means that the 5402 can be used for testing small electronic modules over a wider frequency than standard TEM cells.
The GTEM lends itself best to the measurement of devices that are self-contained with minimal cables that fit within a test volume that is 1/3 the height of the septum and 2/3 the width.
GTEM Cell Highlights:
- For All Phases of EMC Testing
- Design Qualification
- Pre-Compliance
- Full Compliance IEC 61000-4-20 ANSI C63.4
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Max Input Power | 250 W |
| Shielding effectiveness | 10 kHz to 1 GHz From Internal E-Fields; 80 dB Minimum |
| Outer dimensions ( Lx W x H) | 1.4 m (4.59 ft) x 0.75 m (2.46 ft) x 0.5 m (1.64 ft) |
| Emissions Frequency Range | 9 kHz to 5 GHz |
| Immunity Frequency Range | DC - 20 GHz |
| Septum height | 250 mm |
| Typical VSWR |
All Other Frequencies: 1.30:1 Characteristic Frequencies3: 1.75:1 |
| Field strength | 10 V/m to 20 V/m |
| Usable test volume (EUT space available) | 125.0 mm (4.92 inches) in Height, 167.0 mm (6.57 inches) in Width |
