ETS-Lindgren
565mm GTEM (Gigahertz Transverse Electromagnetic) Cell for Radiated Immunity and Emissions Testing

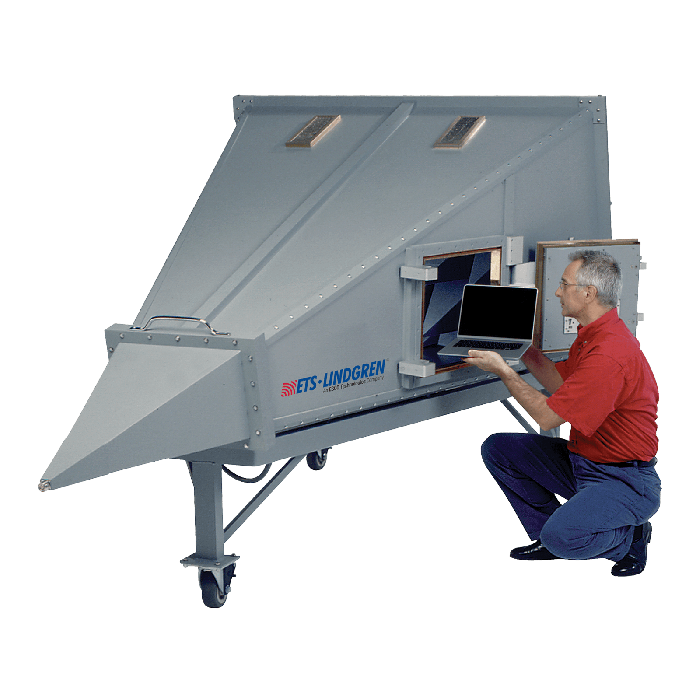

565mm Septum GTEM Cell
Model 5405 GTEM! Test Cell enables users to perform radiated emissions and radiated immunity tests in less time than either an OATS or in a chamber. Tests can be performed quickly and accurately throughout the product life cycle. Beginning with design qualification testing and moving through to pre-compliance testing, full-compliance testing, and production sampling, the Model 5405 GTEM! Test Cell is a time saving device for your test lab. A typical radiated emissions test (10,000 point scan) can be completed in 15 minutes or less, while a typical radiated immunity test can usually be completed in half the normal time.
The GTEM lends itself best to the measurement of devices that are self-contained with minimal cables that fit within a test volume that is 1/3 the height of the septum and 2/3 the width. The GTEM 5405 and GTEM 5411 models can be used for high voltage pulse testing using the optional High voltage (HV) feed and a pulse source for example when testing to MIL STD RS 105.
GTEM Cell Highlights:
- Emissions, Immunity and Shielding Effectiveness
- Design Qualification
- Pre-Compliance
- Full Compliance IEC 61000-4-20 ANSI C63.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Max Input Power | 250 W / 400 W |
| Shielding effectiveness | 80 dB |
| Outer dimensions ( Lx W x H) | 1.7 x 3 x 1.6 m |
| Emissions Frequency Range | 9 kHz to 5 GHz |
| Immunity Frequency Range | DC - 20 GHz |
| Septum height | 565 mm |
| Typical VSWR | 1.30:1, 1.75:1 |
| Field strength | 10 V/m or higher |
| Usable test volume (EUT space available) | 7 inches x 9 inches x 13 inches (approx. 18 cm x 23 cm x 33 cm) |
