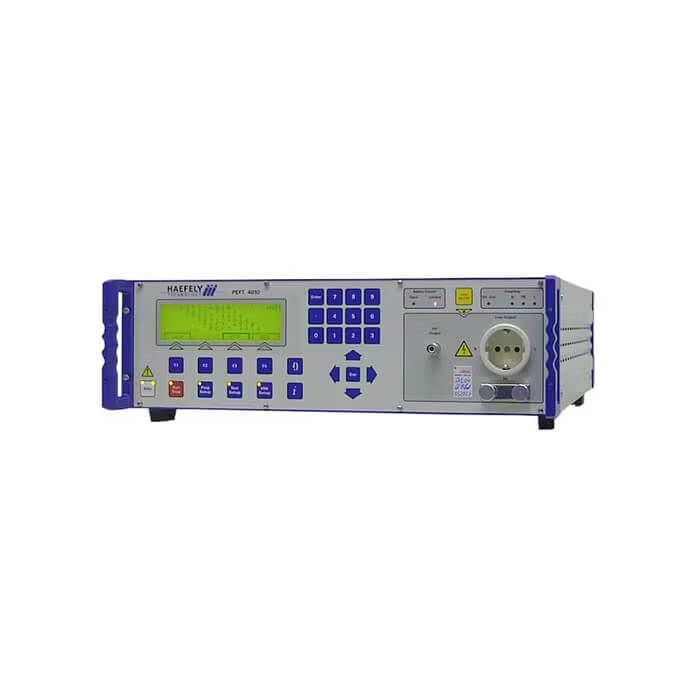

PEFT 8010 - EFT/Burst Immunity Test System
The Haefely PEFT 8010 is the state-of-the-art EFT/Burst Immunity Test System with a built-in coupling/decoupling network
Designed for single-phase or three-phase mains supply lines and an HV terminal to connect a capacitive coupling clamp IP4B, the spike frequency can be varied from as low as 1Hz to 110kHz.
The PEFT 8010 is capable of generating 999 spikes per millisecond or up to 250 spikes per burst. Its performance fully complies with IEC 61000-4-4:2004, IEC 61000-4-4 Amd.1 Ed.2:01/2010 and IEC 61000-4-4 Ed.3: 03/2012. Pre-programmed standard test routines and several selected user test routines make the PEFT 8010 an optimum standalone solution for both testing during development and final testing of products and sub-assemblies.
Key Features
- EFT impulse generation according to the newest standards and the latest technology
- Automatic test operation for the shortest measuring time and minimal setup effort
- Data exchange to a printer or computer is possible without any additional hardware/software
- Compact and reliable construction for factory, laboratory or field use
- A remote control is provided by optional software (WinFEAT&R) designed specially for EMC testing
- ISO 9001:2000 certified manufactured
- EFT/Burst Test System according to IEC/EN 61000-4-4 Ed. 1 + 2
- 7.3kV EFT/Burst voltage
- Built-in single-phase coupling/decoupling network
For more information on this product, or for expert EMC advice and guidance, start a technical conversation with a member of our team on 0330 313 3220.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Included Accessories | Cable set, User Manual, Calibration certificate |
| Dimensions | 450 x 570 x 130 mm |
| Weight | 14 kg |
| Applications |
|
| Wave Shape: Rise Time |
5 ns ± 30% into 50 Ω load |
| Wave Shape: Impulse Duration |
5 ns ± 30% into 50 Ω load |
| Burst Characteristics: Voltage at HV Output | 1.0 … 7.3 kV |
| Burst Characteristics: Voltage at CDN Output | 1.0 … 6.6 kV |
| Burst Characteristics: Spike Frequency | 1 Hz … 110 kHz |
| Burst Characteristics: Burst Duration | 0.01 … 999 ms |
| Burst Characteristics: Burst Period |
0.1 Hz … 400 Hz |
| Burst Characteristics: Impulses Per Second |
max. 250 for Unom > 4 kV |
| Burst Characteristics: Impulses Per Burst |
max. 75 for Unom > 4 kV |
| Burst Characteristics: Spike Distribution | Normal, Continuous, Random, Real |
| Burst Characteristics: Polarity | Positive and Negative |
| Burst Characteristics: Test Time | 10 s … 8 h per path |
| Single Phase: Coupling/Decoupling Network |
Maximum AC Voltage: 264 V @ 16 … 440 Hz |
| System Configuration |
EUT Fail Input: BNC, logic low to trigger |
| Synchronisation |
Frequency: 16.6 Hz, 40 Hz, 50 Hz, 60 Hz, 400 Hz, auto |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
