Hioki FA1220 | APC Technology Group

FA1220

FA1220

Hioki

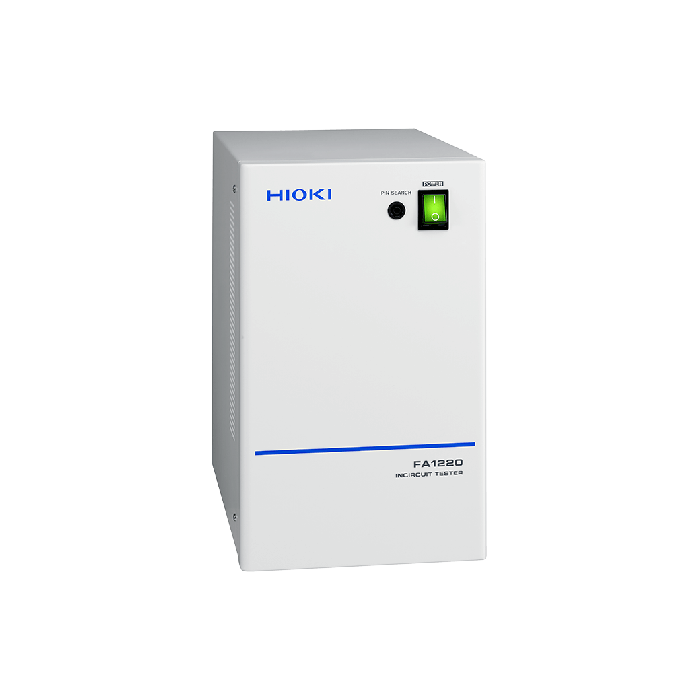

In-Circuit Tester

Embed into Existing Equipment to Conduct Functional Tests of Individual Electronic Circuit Board Components or While Mounted on PCBs

Hioki PCB and substrate inspection equipment leverages our core competency in high-precision component testing. The FA1220 an embeddable PCB measuring component that provides extensive function testing capabilities to complement existing automatic testing equipment.

Key Features

  • Functionality has been consolidated in a single, desktop tower that can be easily embedded in existing equipment
  • Extensive function testing
  • Electrolytic capacitor and IC reverse insertion detection
  • Macro-testing function to increase test efficiency
  • Four-terminal low-resistance measurement for stable measurement of low resistance
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Power Supply 100 to 240 V AC (±10%), single-phase, 50 Hz / 60 Hz, max. 260 W (with full 1024 pins of scanner boards)
Included Accessories Instruction manual ×1, Test leads ×1, Power cord ×1, Metal fittings ×1, Installation CD ×1
Number Of Test Steps

Round-robin short/open data: 1024 pins

Component data: Max. 10000 steps

Macro data: 1024 pins/1024 steps (regardless of number of pins)

IC data: 500 steps (max. 1024 pins/step)

Charge data: 40 sets

Pin contact data: 1024 pins

Group data: 255 groups

Test Parameters And Measurement Ranges

Round-robin short/open: 4 Ω to 400 kΩ (Default: 40 Ω)

Macro testing (impedance): 1 Ω to 10 MΩ

Component tests: Possible

IC reverse insertion detection: Possible

Max. Number Of Pins

Max. 1024 pins (Can be added in blocks of 128 pins.)

Standard : 0 pins (Scanner boards are sold as options.)

Control Unit

External computer (sold separately)

FA1220: Real-time operating system, LAN for PC connectivity (10 / 100 ×1 port)

External I/O Using I/O Board E4220 (*1) : 60 inputs, 56 outputs
Scanner Unit

Software used : Analog switch (Scanner board E4201, E4202)

Number of channels : 128 channels/board (2-/4-terminal switchable)

Input protection : ±15 V / ±0.5 V (Batch-configurable, Scanner Board E4201 / E4202 only)

Measurement Unit

DC voltmeter: 800 μV f.s. to 25 V f.s., 8 ranges

DC ammeter: 100 nA f.s. to 250 mA f.s., 9 ranges

AC ammeter: 10 μArms f.s. to 10 mA rms f.s., 4 ranges

Macro test: Ammeter 10 μ / 100 μ / 1 m / 10 m Arms, 4 ranges

More Information
Attribute Value
Data Sheet Click here to view
