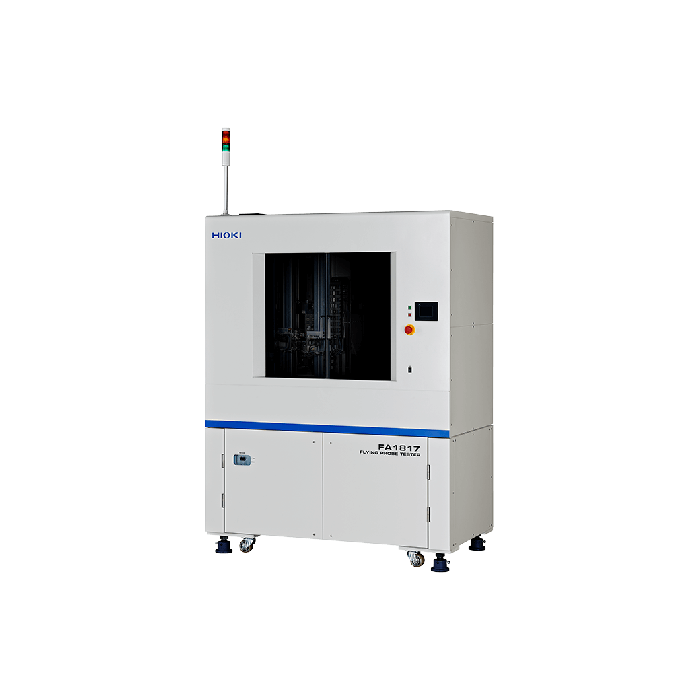

Flying Probe Tester

Detect Latent Defects on High-Density Printed Wiring Boards with Absolute Reliability

The FA1817 is a fixtureless, dual-sided, bare board tester that provides superior cost performance and quick inspection yield thanks to advanced probe movement technology.

Using a total of four arms, two in front and two in back, it is capable of simultaneously testing both sides of the board, provides open via detection via low resistance testing.

Key Features

  • Optimisation of probe movement reduces inspection time by up to 20%
  • Reduce probe marks in combination with the latest probes
  • Latent defect detection using newly developed statistical processing software
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Power Supply

200 V, 220 V, 230 V, 240 V AC single-phase (specify at time of order),

50 Hz/ 60 Hz, Maximum power consumption: 3 kVA

Measurement Speed Max. 67 points/sec. (0.15 mm movements, 4-arm simultaneous probing, capacitance measurement)
Number Of Arms 4 (front × 2, rear × 2)
Compatible Probes 1172 series, CP1072 series
Number Of Test Steps 999,999 steps
Test Parameters And Measurement Ranges

Resistance measurement: 40.00 μΩ to 40.00 MΩ

Insulation measurement: 1.000 kΩ to 100.0 GΩ

Capacitance measurement: 100.0 fF to 10.00 μF

Leakage current measurement: 1.000 μA to 10.00 mA

High-voltage resistance measurement: 1.000 kΩ to 100.0 GΩ

Capacitor insulation measurement: 1.000 kΩ to 10.00 MΩ

Open measurement: 4.000 Ω to 4.000 MΩ

Short measurement: 400.0 mΩ to 40.00 kΩ

Judgment Range -99.9% to +999.9% or absolute value
Minimum Pad Pitch 45 μm (with CP1075-09)
Minimum Pad Size 15 μm (with CP1075-09)
Testable Board Size

Standard specification: 50 mm (1.97 in) W × 50 mm (1.97 in) H to 610 mm (24.02 in) W × 510 mm (20.08 in) H, Thickness 1.0 mm (0.04 in) to 3.2 mm (0.13 in)

Pneumatic board clamp (option): 50 mm (1.97 in) W × 70 mm (2.76 in) H to 610 mm (24.02 in) W × 510 mm (20.08 in) H, Thickness: 0.6 mm (0.02 in) to 6.0 mm (0.24 in)

Maximum Testable Area 604 mm (23.78 in) W × 504 mm (19.84 in) H
More Information
Attribute Value
Data Sheet Click here to view
