FA1221

FA1221

Hioki

Short-Open Tester

Multichannel short/open tester that can be embedded in existing test equipment

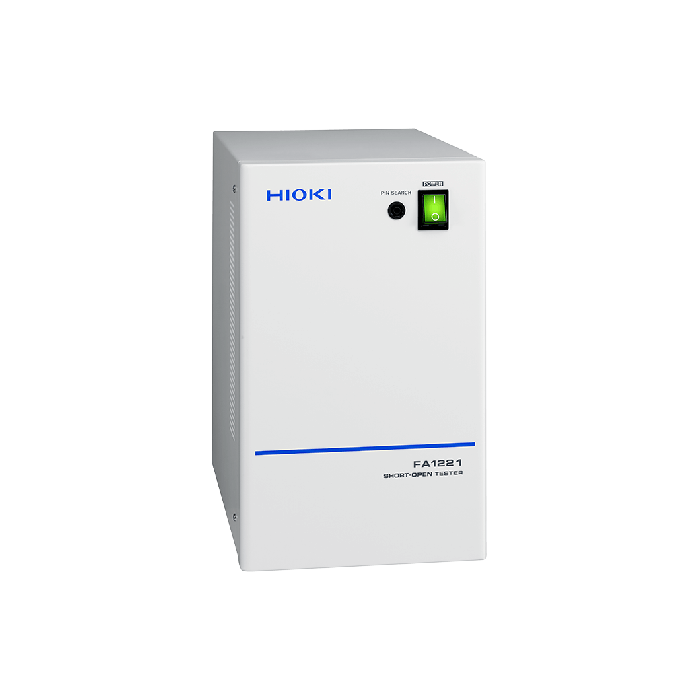

The FA1221 is a multichannel short/open 4-wire test equipment for populated board testing. Its small form factor lets you embed the unit into existing systems, which helps reduce installation time and costs.


Key Features

  • Functionality has been consolidated in a single, desktop tower that can be easily embedded in existing equipment
  • Specifically designed for short/open testing
  • Four-terminal low-resistance measurement for stable measurement of low resistance
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Power Supply 100 to 240 V AC (±10%), single-phase, 50 Hz / 60 Hz, max. 130 W
Included Accessories Instruction manual ×1, Test leads ×1, Power cord ×1, Metal fittings ×1, Installation CD ×1
Number Of Test Points 128 pins (during 4-terminal measurement, up to 32 sets)
Number Of Test Steps

Round-robin short/open : 128 pins

Component data: Max. 10000 steps

Charge data: 40 sets

Pin contact data: 128 pins

Group data: 255 groups

Test Parameters And Measurement Ranges

Round-robin short/open: 4 Ω to 400 kΩ (Default: 40 Ω)

Component tests: Possible

Component Tests

Resistance: 400 μΩ to 40 MΩ

Open: 4 Ω to 4 MΩ

Short: 400 mΩ to 40 Ω

Test Signals

DC constant voltage: 100 m / 400 mV : 2 ranges

DC constant current: 2 m / 20 mA, 2 ranges

Judgment Range -99.9% to +999.9% or absolute value
Measurement Times

Round-robin short/open: From approx. 0.8 ms per pin

Component: From approx. 0.9 ms per step

Statistics Functionality Defect rate tabulation and graph display test, group, and overall; component test histogram; operating time cumulative and subtotal displays
External I/O Using I/O Board E4220 (*1) : 60 inputs, 56 outputs
Scanner Unit 128 channels/board (2-/4-terminal switchable, no guarding)
Measurement Unit

DC ammeter: Ammeter 80 μ / 800 μ / 4 m / 40 m Arms, 4 ranges

DC ammeter: 250 n / 2.5 μ / 25 μ / 250 μ / 2.5 m / 25 m A f.s., 6 ranges

More Information
Attribute Value
Data Sheet Click here to view
