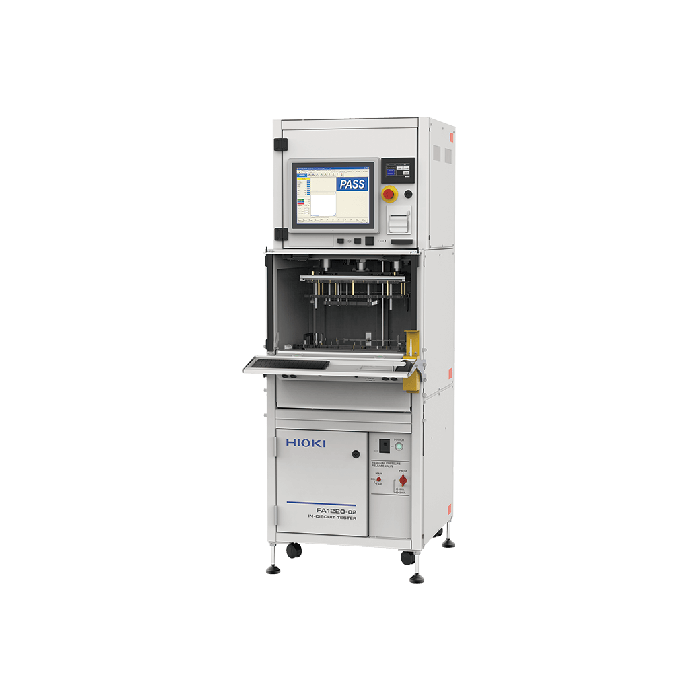

FA1220-02

FA1220-02

Hioki

In-Circuit Tester

Batch Testing System for Improved Populated Circuit Board Productivity

Hioki testing systems continue to evolve so that the people who use them can shine. Reflecting its commitment to bring speed and comfort to the production floor by streamlining testing, Hioki’s proud to introduce a populated board tester designed with people in mind.

Key Features

  • Slide-in mechanism simplifies installation and removal of test fixtures, reducing man-hours and workload.
  • Extension range of options that reduces setup man-hours and boosts productivity.
  • Numerous measurement parameters and detecting defects for a wide variety of inspections.
  • Productivity, quality, and safety.
  • Data creation support functionality: ATG function.
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Power Supply

Rated supply voltage: 100 to 240 V AC, 50 Hz/60 Hz

Maximum power consumption: 1 kVA

Included Accessories Instruction Manual ×1, Test lead ×1, Application disc ×1, Positioning screws ×4, Maintenance key (for opening and closing the maintenance door) ×1
Number Of Test Steps

Group data: 256 groups

Round-robin short/open data: 2048 pins*

Macro data: 2048 pins*/2048 steps (regardless of pin count)

Component data: 10000 steps

Charge data: 40 groups

Pin contact data: 2048 pins*

IC data: 500 steps (max. 2048 pins/step)*

* The maximum number of active pins for each test type depends on the total number of scanner board pins installed in the product.

Test Parameters And Measurement Ranges

DC voltmeter: 800 μV f.s. to 25 V f.s., 8 ranges

DC ammeter: 100 nA f.s. to 250 mA f.s., 9 ranges

AC ammeter: 10 μA rms to 10 mA rms, 4 ranges

HV voltmeter: 25 mV f.s. to 250 V f.s. (Requires E4210 and E4203)

HV ammeter: 1.2 μA f.s. to 120 mA f.s. (Requires E4210 and E4203)

Max. Number Of Pins

Standard: 0 pins (scanner boards optional)

Max. 2048 pins (expandable in blocks of 128 pins). The maximum number of active pins for each test type depends on the total number of scanner board pins installed in the product.

Control Unit

Measurement control
Operating system: Real-time operating system
Storage device: SD card (for booting system)

Main unit control
Operating system: Windows 10 Pro (64-bit)
Storage device: 64 GB SSD
Operation: keyboard and mouse
Display: 15-inch display
Printer: E4243 (option)

External I/O Ethernet (LAN) 100Base-TX ×1 (please contact Hioki for communication with external devices.)
Scanner Unit

Switch type: analogue (Scanner Board E4201 and E4202), read relay (Scanner Board E4203)

Number of channels: 128 per board

Input protection: ±15 V (Scanner Board E4201 and E4202), none (Scanner Board E4203)

More Information
Attribute Value
Data Sheet Click here to view
