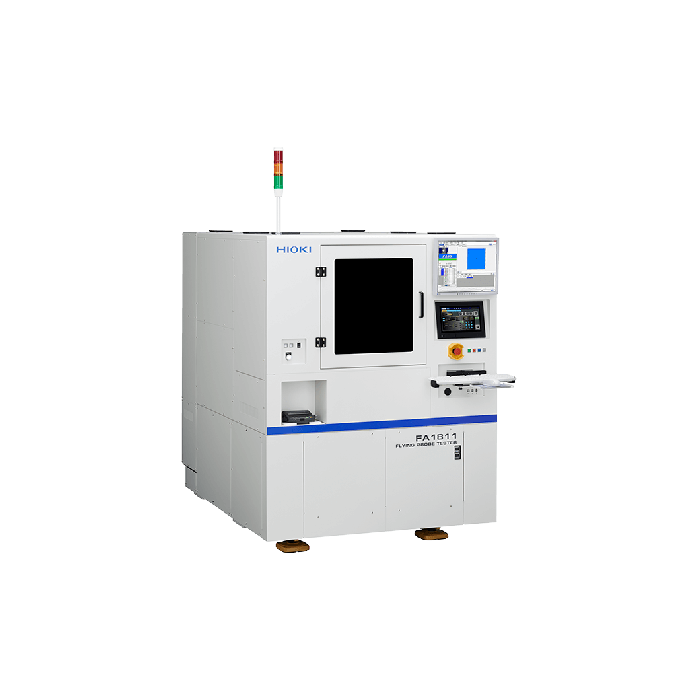

Flying Probe Tester

Meeting Ever Increasing Demands for Greater Analytical Power, Faster Testing Speeds and Reduced Costs

Designed specifically for package board testing, the FA1811 achieves both high-precision contact with a total probing precision of 10 μm, and a testing speed rivaling generic flying probe testers to meet ever increasing demands for greater analytical power, faster testing speeds and reduced costs.

Key Features

  • Achieve both high precision contact and high-speed probing in a space of 10 μm.
  • Double test method delivers an operation rate of 100%.
  • Full-net insulation continuity test using resistance: x10 max. speed*
  • High-speed test using capacitance: x2 max. speed
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Power Supply

200 V AC ±10% (three phase) 50/60 Hz (200 V, 220 V AC: specified upon order)

Maximum power consumption: 5 kVA

Notes

Test fixture CP1165-11 Specifications: Designed for each board

Vacuum unit for capacitance test E4101 Specifications: To accommodate the entire range of substrate thickness, it is necessary to replace the spacer for substrate thickness adjustment.

Number Of Arms 2 (Upper: 2)
Compatible Probes CP1073 series
Test Parameters And Measurement Ranges

Resistance measurement : 400.0 μΩ to 40.00 MΩ 4.000 Ω to 4.000 MΩ (T)

Capacitance measurement : 100.0 fF to 10.00 μF

MLCC measurement : 100.0 nF to 100.0 μF

Insulation measurement : 1.000 kΩ to 100.0 GΩ 1.000 kΩ to 250.0 MΩ (T)

Capacitor insulation measurement : 1.000 kΩ to 10.00 MΩ

High-voltage resistance measurement : 1.000 kΩ to 100.0 GΩ 1.000 kΩ to 250.0 MΩ (T)

Leak current measurement : 1.000 μA to 10.00 mA

Continuity : 400 mΩ to 1.000 kΩ

Open measurement : 4.000 Ω to 4.000 MΩ

Short measurement : 400.0 mΩ to 40.00 kΩ

Judgment Range -99.9% to +999.9% or absolute value
Total Probing Precision 10 μm (Square)
Minimum Pad Pitch Min. 40 μm (when using CP1073-01)
Probing Area 75 mm (2.95 in) × 75 mm (2.95 in)
Clamp Method Follow option on BGA side
Board Dimensions

Test fixture CP1165-11 Specifications: Square 10 mm (0.39 in) to Square 80 mm (3.15 in)

Vacuum unit for capacitance test E4101 Specifications: 50 mm (1.97 in) W × 90 mm (3.54 in) D to 105 mm (4.13 in) × 250 mm (9.84 in)

Supported Range Of Board Thicknesses For Clamping

Test fixture CP1165-11 Specifications: 0.1 mm (0.004 in) to 5.0 mm (0.20 in)

Vacuum unit for capacitance test E4101 Specifications: 0.1 mm (0.004 in) to 0.8 mm (0.031 in)

Board Clamping

Test fixture CP1165-11 Specifications: Holder, shutter, and vacuum pump required separately

Vacuum unit for capacitance test E4101 Specifications: Vacuum pump E4106 required separately

Supported Pad Diameter Test Fixture CP1165-11 Specifications: 200 μm or larger, 300 μm or larger when using Kelvin probe
Max. Number Of Pins Test Fixture CP1165-11 Specifications: 8192
More Information
Attribute Value
Data Sheet Click here to view
