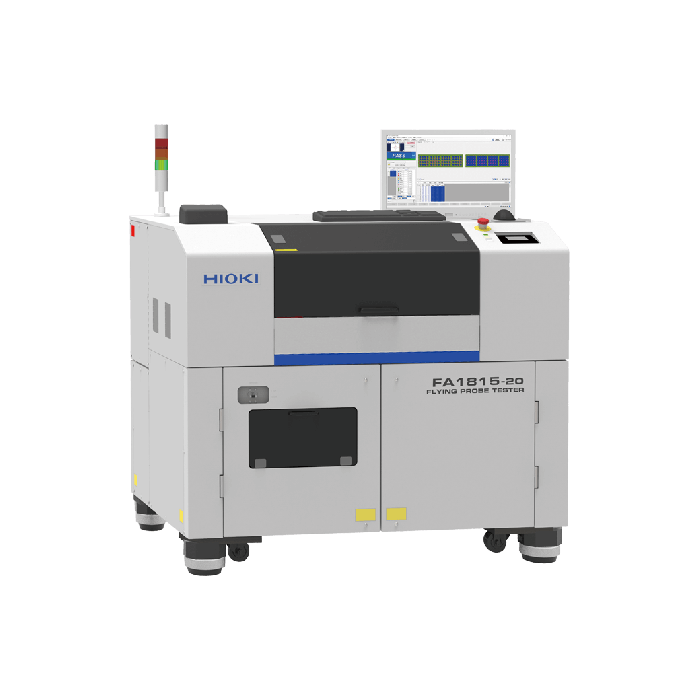

FA1815-20

FA1815-20

Hioki

Flying Probe Tester

Improved efficiency and reliability take board production to the next level

With remarkable progress in IT technology driving the semiconductor industry forward, reliability and productivity have become indispensable. Flying probe testers have long been the industry standard tool for PCB inspection.

However, as inspection demands grow more stringent, the FA1815-20 emerges as the next-generation flying probe tester, ready to meet the challenges of precision and speed head-on.

Moreover, this tester introduces an innovative approach to insulation resistance inspection that minimises some cautious users’ concern about board damage with high-voltage testing in high-resistance inspections. This advancement represents Hioki's commitment to providing market-leading solutions that contribute to societal progress.

Key Features

Improved takt time due to market-leading technology
High reliability due to high probing precision
Insulation testing up to 100 GΩ is enabled with an applied 10 V

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Power Supply

200 V, 220 V, 230 V, 240 V AC single-phase (specified at time of order);

50/60 Hz; maximum power consumption: 5 kVA

Measurement Speed Max. 100 points/sec. (0.15 mm movements, 4-arm simultaneous probing, capacitance measurement)
Number Of Arms 4 (2 each, top and bottom)
Compatible Probes 1172 series, CP1072 series, CP1073 series
Number Of Test Steps Max. 4,000,000 steps
Test Parameters And Measurement Ranges

DC constant-current continuity measurement:400.0 mΩ to 1.000 kΩ

DC constant-current resistance measurement: 40.00 μΩ to 400.0 kΩ

DC constant-voltage resistance measurement: 4.000 Ω to 40.00 MΩ

Insulation resistance measurement: 1.000 kΩ to 100.0 GΩ

Low voltage insulation resistance measurement: 1.000 MΩ to 100.0 GΩ

AC constant-voltage capacitance measurement: 100.0 fF to 10.00 μF

Leakage current measurement: 1.000 μA to 100.0 mA

High-voltage resistance measurement: 1.000 kΩ to 100.0 GΩ

Capacitor insulation measurement: 1.000 kΩ to 250.0 MΩ

Open measurement: 4.000 Ω to 4.000 MΩ

Short measurement: 400.0 mΩ to 40.00 kΩ

Judgment Range -99.9% to +999.9% or absolute value
Movement Resolution XY: 0.1 μm/pulse; Z: 1 μm/pulse
Minimum Pad Pitch

Top surface: 34 μm (with CP1075-09)

Bottom surface: 44 μm (with CP1075-09)

Minimum Pad Size

Top surface: 4 μm square (with CP1075-09)

Bottom surface: 14 μm square (with CP1075-09)

Testable Board Size

Thickness : 1 mm (0.04 in.) to 12 mm (0.47 in.)

Outer dimensions : 50 mm (1.97 in.) W × 50 mm (1.97 in.) D to 340 mm (13.39 in.) W × 340 mm (13.39 in.) D

Maximum Testable Area 340 mm (13.39 in.) W × 340 mm (13.39 in.) D
Clamp Method

Flexible Fixture

Vacuum Unit for Capacitance Test (Options)

Air Requirements

Primary-side pressure: 0.5 MPa to 0.99 MPa (dry air)

Maximum consumption: 0.3 L/min. (ANR)

More Information
Attribute Value
Data Sheet Click here to view
