LR5011
LR5011
Hioki

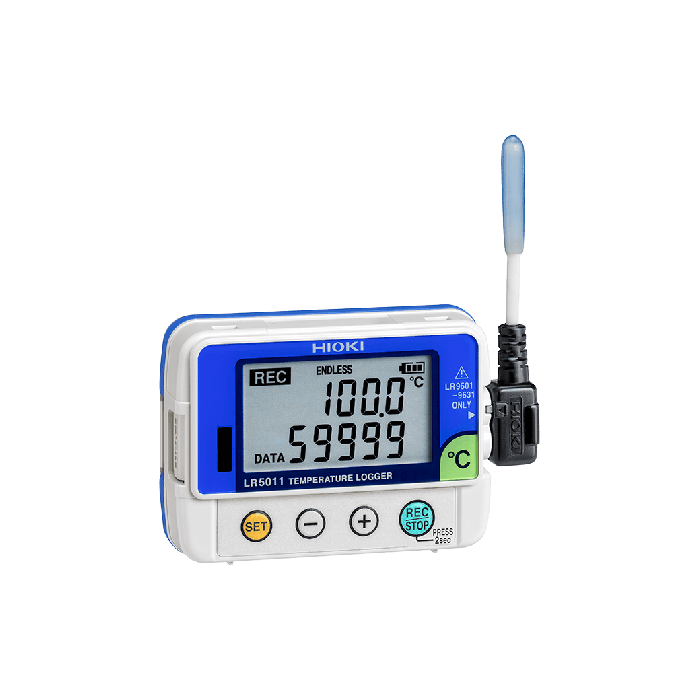

Temperature Logger
Measure Temperature with External Sensor using Single Channel Data Logger
Hioki compact 1 or 2-channel data loggers feature a 60,000 data set/channel memory to measure temperature, humidity, voltage or instrumentation signals. The LR5011 logs temperature over 1 channel in as fast as 1 second intervals.
Key Features
- Easily mount the light-weight , pocket-sized loggers in tight spaces
- Easy-to-see dual display
- Transfer data to PC even during recording*
- Replace batteries while recording (30 second limit)
- 3 times the memory capacity than predecessor (Record 60,000 data per channel)
- Record without missing fluctuations in STAT mode
- Measurement data is preserved even after the battery dies
- Worry-free backup preserves recorded data even if a new measurement is started by mistake
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Included Accessories | LR6 (AA) Alkaline battery (built-in internal) × 1, Instruction manual × 1, Operation guide × 1, Kickstand × 1 |
| Interfaces | Infrared optical communications with LR5091, LR5092-20 |
| Measurement Items | Temperature 1ch (with optional sensor) |
| Measurable Range |
-40.0°C to 180.0°C |
| Measurement accuracy |
±0.5°C (main unit + sensor accuracy, at 0.0 to 35.0°C) |
| Recording |
Recording Modes Recording Methods |
| Power source | LR6 (AA) Alkaline battery × 1, Battery life: Approx. 2 years (Instantaneous recording, with 1-minute interval and auto power saving, at 20 °C), Approx. 2 months (Instantaneous recording, with 1-second interval at 20 °C) |
| Dimensions and Weight | 79 mm (3.11 in) W × 57 mm (2.246 in) H × 28 mm (1.10 in) D, 105 g (3.7 oz) |
| Storage Capacity | Instantaneous value mode: 60,000 data, Statistical value mode: 15,000 data |
| Recording Interval | 1 to 30 sec., 1 to 60 min., 15 selections |
| Other Functions | Always backs up last recorded data; backs up recorded data and setting conditions when battery power is low; guarantees approx. 30 sec. of recording operation and clock while battery is replaced |
| Waterproof and Dust-proof | IP54 (EN60529) (with sensor connected, but not including sensor tip) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
