LR5091
LR5091
Hioki
Communication Adapter
This product is available in 5-7 weeks
Easily Transfer Logging Data from a LR5000 Series Data Logger to a PC

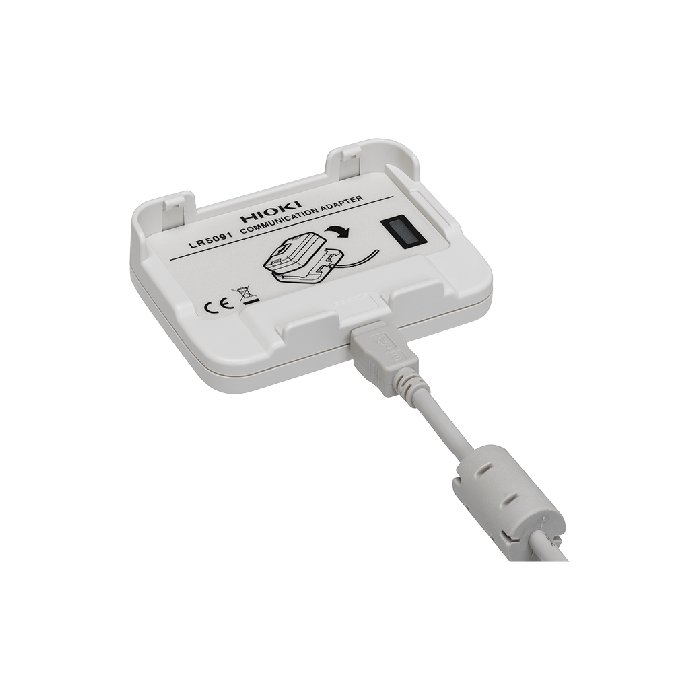

The Hioki LR5091 is a communication adapter for transferring data from the LR5000 Series Data Loggers. Simply dock the data logger onto the Communication Adapter to transfer data using infrared, then upload the data to a PC via USB using the bundled PC application.
Key Features
- Transfer the recorded data from the LR5000 Series Data Logger to a PC
- Transfer data logger configurations or clock settings from a PC to the data logger
- Use the included software to easily graph and print data, and calculate maximum, minimum, and average values and more between cursors
We work closely with our technology partners to offer customers the best
lead time and prices we can achieve.
Contact our team for the latest availability and pricing information on
0330 313 3220, or use the request a quote button below and a member
of our team will be in touch.
| Attribute | Value |
|---|---|
| Included Accessories | USB cable (1 m) ×1, CD (Application software "LR5000 Utility") ×1 |
| Functionality |
Transfer data from a data logger to a PC |
| Functions |
Settings: Communicates via infrared light with LR5000 series loggers to send and receive settings. Graph function: Displays graphs of up to 16 channels, displays statistical data, etc. Print function: Print graphs, Print statistical data. Export function: Data CSV output, paste into Excel. Import function: Loads text files from the Clamp On Power HiTester 3169-20/-21 [only demand parameter with a recording interval of at least 1 sec.] Processing of data: Scaling, Power calculation, Energy cost calculation, Operating ratio calculation, Integration, Dew point temperature, Calculate between channels. |
| Communication Method |
Between data loggers: Infrared communication
|
| Power source | USB bus power |
| Dimensions and Weight | 83 mm (3.27 in) W × 61 mm (2.40 in) H × 19 mm (0.75 in) D, 43 g (1.5 oz) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
