LR8512
LR8512
Hioki

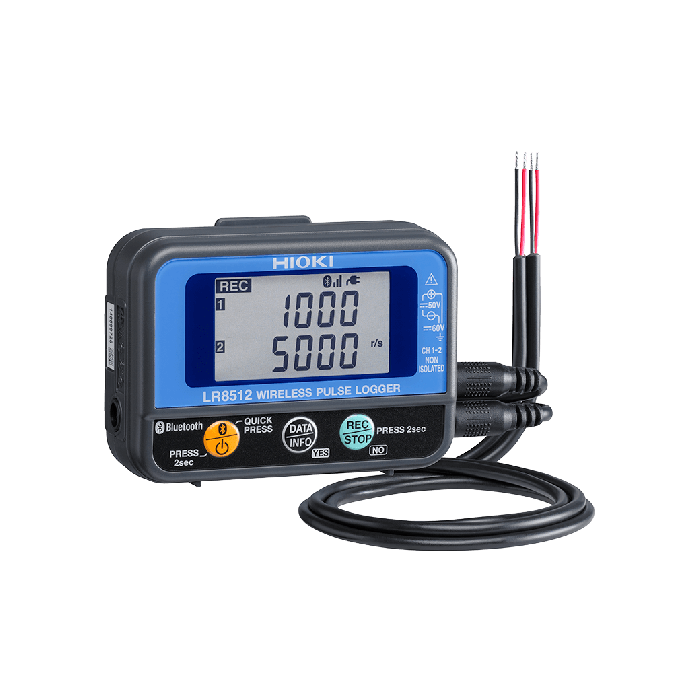

Wireless Pulse Logger
Perform Pulse Integration of Vehicle Speed or Flow Rate for Equipment such as Air Conditioners
Hioki Memory HiLoggers are high-speed data loggers for recording multiple channels of voltage, temperature, resistance or humidity signals, some models providing complete isolation between channels and strong noise resistance. The Hioki LR8512 is a wireless, 2-channel pulse input module that utilizes Bluetooth® technology to send measured data to an Android (TM) tablet.
Key Features
- For pulse totalization and measuring logical ON/OFF signals or revolutions
- Compact, two-channel model fits where other devices don’t
- Download measurement data to a tablet or computer with Bluetooth® wireless technology
- Three-way power (AC adapter, AA alkaline batteries, or external 5 to 13.5 V power supply)
- Store 500,000 data points per channel
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Included Accessories | CD-R ×1 (Instruction Manual, Logger Utility, Wireless Logger Collector), Measurement Guide ×1, Caution for Using Radio Waves ×1, AA alkaline batteries (LR6) ×2, Connection cable L1010 ×2 |
| Number of Channels | 2ch (common GND) |
| Functionality |
[Used as standalone product (Data collected manually) ] |
| Measurement Items | Integrating (cumulative/ Instant), Revolution, Logic (Records a 1/0 for each recording interval) |
| Supported Input Format | Non-voltage “a” contact (always-open contact point), open collector, or voltage input (DC 0 to 50 V) |
| Measurable Range |
[Totalization] 0 to 1000 M pulse, Max. resolution 1 pulse, |
| Display items | Measurement value, date, time, number of recorded data, maximum value, minimum value, and average value |
| Functions | Alarm, Scaling, Recording operation hold function, Erroneous operation prevention, Comment recording function, Power saving function, Authentication function |
| Recording | [Capacity] 500,000 data items for each channel [Mode] Instantaneous value [Interval] 0.1 to 30 sec, 1 to 60 min, 16 selections |
| Power source | AC Adapter Z2003 (100 to 240 V AC, 50/60 Hz), AA alkaline batteries (LR6) ×2, External power 5 to 13.5 V DC (can also be supplied from USB bus power, with a conversion cable) |
| Continuous operating time ([Capacity] 500,000 data items for each channel) (23˚C) | 2 months (Recording interval of 1 min, Bluetooth® OFF), 14 days (Recording interval of 1 sec, Bluetooth® ON), 5 days (Recording interval of 0.1 sec, during real-time measurement with the LR8410) |
| Dimensions and Weight | 85 mm (3.35 in) W × 61 mm (2.40 in) H × 31 mm (1.22 in) D, 95 g (3.4 oz) (excluding the battery) |
