3272
3272
Hioki
Power Supply

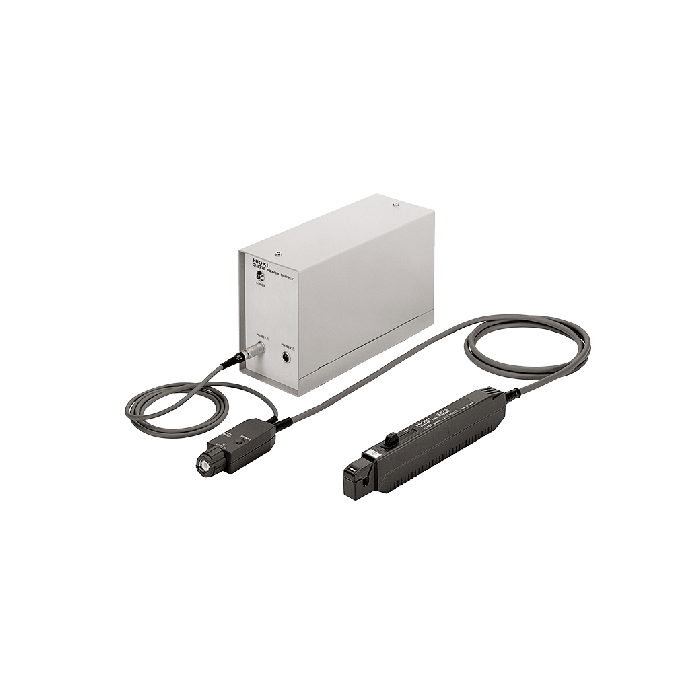

Power Supply Unit for Outputting Current Probe Signals to Memory HiCorders and Oscilloscopes
Hioki flat bandwidth current probes are best-in-class current sensors for use with Memory HiCorders and high performance oscilloscopes. The 3269 is a 4 channel power supply for outputting signals measured by the 3270 Series AC/DC Clamp On Probe to the data acquisition equipment.
Key Features
- Power supply for the Clamp on probe 3273-50 - 3276, CT6700 and CT610 series
- Supplies power when connected to a general-purpose instrument such as a recorder
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Power Supply | 100 V or 120/ 220/ 240 V AC (specify when ordering), 50/60 Hz 20 VA max. |
| Included Accessories | Instruction manual ×1, Power cord ×1 |
| Dimensions and Weight | 73 mm (2.87 in)W × 110 mm (4.33 in)H × 186 mm (7.32 in)D, 1.1 kg (38.8 oz) |
| Output Voltage Rate | ±12 V ±0.5 V, 600 mA (sum total of all channels) |
| Compatible Sensors | The CT6700, CT6701: up to 2 units Note: When measuring the maximum peak current, only one unit The 3273-50, 3274, 3275 or 3276: up to 1 unit Note: May be used with up to 2 units of Model 3273 (not -50 type), and up to 2 units of Models 3273-50, 3274, 3275 or 3276 on condition that the measurement current is sufficiently low. Note: The CT6710, CT6711 cannot be used |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
