BT5525

BT5525

BT5525

Hioki

Battery insulation Tester

Skip to the end of the images gallery

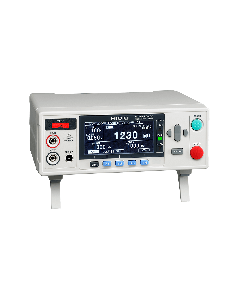

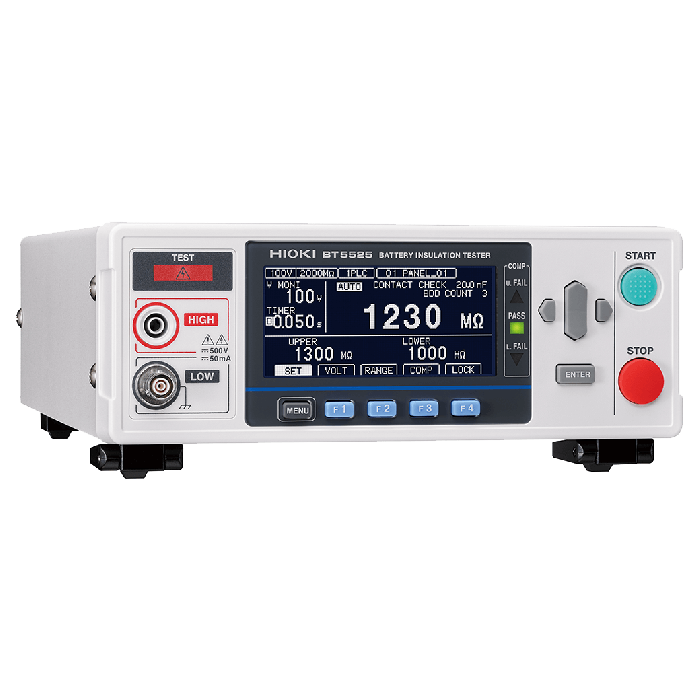

main product photo

Skip to the beginning of the images gallery

Detect contamination that could cause defects and improve battery cell productivity through high-speed testing.

The Hioki BT5525 can prevent the shipment of batteries with latent defects that could lead to fires.

Key Features

Ideal for battery production lines
BDD function for detecting minuscule short-circuits caused by contamination before batteries are shipped
Stable insulation resistance testing even in noisy environments
High cost performance thanks to accessible pricing, high-speed testing, and compact footprint
Contact check function reduces the number of false negatives caused by equipment issues

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote

More Information
Attribute	Value
Power Supply	100 V to 240 V AC
Interfaces	USB, LAN, RS-232C, EXT. I/O
Dimensions and Weight	Approx. 215 mm (8.46 in) W × 80 mm (3.15 in) H × 306.5 mm (12.07 in) D (excluding protruding parts), Approx. 2.8 kg (98.8 oz)
Accessories	Power cord ×1, EXT. I/O male connector ×1, EXT. I/O connector cover ×1, EXT. I/O interlock cancellation jig ×1, Startup Guide ×1
Main Functions	Insulation resistance test Break Down Detect function (BDD) Contact check function
Output Specifications	Output voltage: 25 V to 500 V, Setting resolution 1 V Charging current (Current limit function): 50 µA to 50 mA123, Minimum setting resolution 10 μA Short-circuit current: 60 mA or less Discharge current: 40 mA or greater 1: Constraints involving the output generator will result in an error, making measurement impossible, if a capacitive load of approximately 50 μF or greater is connected while using a current limit setting of 5.1 mA or greater. 2: When using a current limit setting of 5.1 mA or greater, measurement will be forcibly stopped if the output voltage is not at least 20 V at 200 ms after the start of measurement. Measurement will be possible 1 s after forcibly stopped. 3: If the set current limit value is from 5.1 mA to 50.0 mA, the current will be limited to 5 mA after the output voltage reaches the set voltage.
Measurement Specifications	Resistance value display range : 0.050 MΩ to 9999 MΩ Resistance range : 2 MΩ, 20 MΩ, 200 MΩ, 2000 MΩ, AUTO
Basic Specifications	±1.5％ rdg.±2 dgt. 25 V ≤ V < 100 V [0.05 MΩ to 2 MΩ], 100 V ≤ V ≤ 500 V [0.2 MΩ to 20 MΩ]
Time Specifications	Test time: 0.050 s to 999.999 s, OFF Comparator delay time: 0.001 s to 999.999 s, AUTO Display update speed: 1 PLC Sampling time: 1 PLC to 100 PLC
Memory Functions	Panel save function: Saves up to 15 sets of measurement conditions Measured value memory function: Saves up to 999 measured values in the instrument's internal memory
Judgement Functions	Test modes : Continuous test, PASS STOP, FAIL STOP Comparator function : UPPER_FAIL : Measured value > upper limit value PASS : Upper limit value ≥ meas Test modes: Continuous test, PASS STOP, FAIL STOP Comparator function : UPPER_FAIL: Measured value > upper limit value PASS: Upper limit value ≥ measured value ≥ lower limit value LOWER_FAIL: Measured value < lower limit value ured value ≥ lower limit value LOWER_FAIL : Measured value < lower limit value
Various Functions	Break Down Detect function (BDD): Detecting minuscule insulation defects caused by contamination Contact check function: 2-terminal capacitance measurement method Automatic data output function: Automatic output of measurement results via communication interface after completion of test Command monitor function: Screen display of commands being sent and received External I/O monitor function: Screen display of output signal ON/OFF and input signal status Analogue output function: Converts measured values to 0 to 4 V DC and outputs
Power Consumption	Approx. 20 VA4 4: Power supply conditions are 220 V supply voltage, 50, 60 Hz supply frequency, 200 V test voltage, 2 mA current limit, and load (1 GΩ resistor and 0.1 μF capacitor connected in parallel).
Maximum Rated Power	100 VA

More Information
Attribute	Value
Data Sheet	Click here to view
