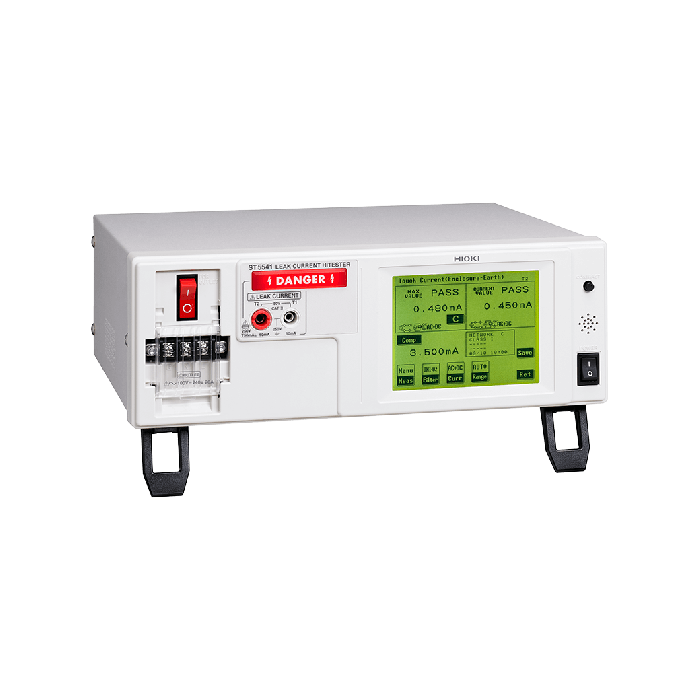

Leak Current HiTester
Leak Current Measurement, an Essential Part of Electrical Safety (for electrical devices)
To ensure the safe use of electrical products, electrical safety tests such as insulation resistance, withstand voltage, ground resistance, and leakage current must always be conducted. Hioki Leakage Current Testers comply with laws and standards regarding medical electrical equipment as well as non-medical electrical equipment, and can be used to measure leakage current in all types of electrical products from computers to medical equipment.
The ST5541 provides support for standard-compliant networks (excluding medical-use electrical devices).
Key Features
- Compliance with Electrical Appliances and Materials Safety Act, JIS/IEC/UL standards
- Uninterrupted polarity switching function dramatically reduces cycle time
- Support for rated currents up to 20 A gives the instrument more than adequate capability for testing products designed to comply with new standards
- Touch panel features simple, interactive operation
- Communications functionality and external I/O support allow automatic testing on production lines
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Notes | For applications involving leak current measurement of medical-use electrical devices, use the ST5540. |
| Power Supply | 100/120/220/240 V AC (specify at time of order), 50/60 Hz, 30 VA rated power |
| Interfaces | External I/O, USB 1.1 (communications), RS-232C |
| Functionality | Automatic test, data storage for 100 target devices, clock, data backup, printed output (optional), etc. |
| Dimensions and Weight | 320 mm (12.60 in) W × 110 mm (4.33 in) H × 253 mm (9.96 in) D, 4.5 kg (158.7 oz) |
| Measurement ranges |
DC / AC / AC+DC mode: 50.00 mA/ 5.000 mA/ 500.0 μA/ 50.00 μA |
| Measurement Methods | Measurement of voltage drop across body simulated resistance points, Calculation and display of current values, True rms measurement, Measurement unit floats relative to instrument ground. |
| Accuracy |
DC measurement: ±2.0% rdg. ±6 dgt. (typ.) |
| Accessories | Test lead L2200 (Red ×1, Black ×1) ×1 set, Enclosure probe 9195 ×1, Power cord ×3, Spare fuse for measurement line ×1, Instruction manual ×1, CD-ROM ×1 |
| Measurement Current | DC, AC (true rms, 15 Hz to 1 MHz), AC+DC (true rms, 15 Hz to 1 MHz), AC peak (15 Hz to 1 MHz) |
| Measurement Modes | Leak current measurement, voltage measurement, safety conductor current measurement |
| Standards Compliance (NW: body simulated resistance) |
[NW-A] [NW-C] [NW-D] [NW-G] |
| Leak Current Measurement | Ground leak current, 3 types of contact current, free current measurement, 3 types of enclosure leak current |
| Target Device Power Supply Input | 100 to 250 V AC, 50/60 Hz, Rated current input from terminal block: 20 A |
| Target Device Power Supply Output | Output from terminal block: 20 A, Output from outlet: 15 A |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
