PD3129
PD3129
Hioki

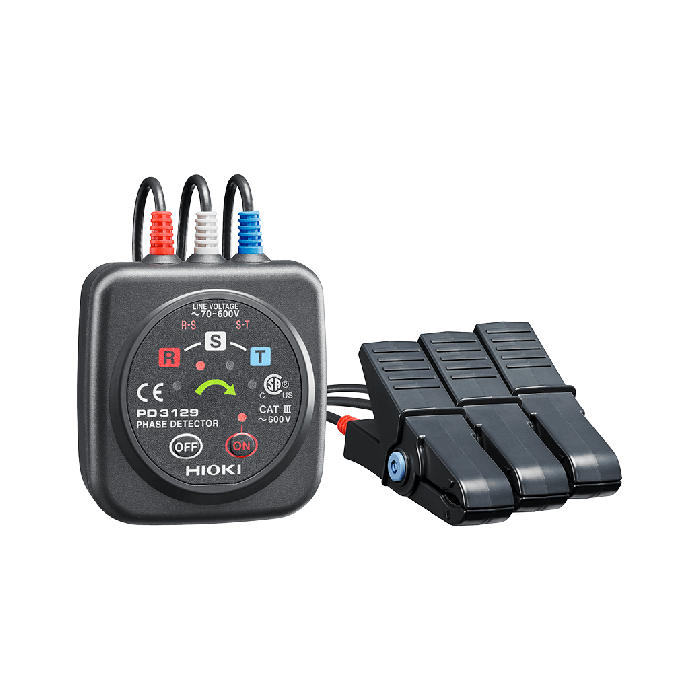

Phase Detector
Phase Rotation Meter with Easy-to-Read Arrow and Non-Metallic Contact Clips for 70 V to 600 V Lines
Hioki’s non-contact voltage detection and measurement technology places efficiency and safety as priority considerations with the goal of protecting customers that need to conduct on-site electrical work as part of renovations and expansions of manufacturing plants and buildings. Model PD3129 is a non-contact phase rotation meter that detects the phase of electrical current flow within insulated wires without using metallic contact voltage clips. The green arrow indicates normal phase, which can be useful for visual reports that document the proper completion of electrical work.
CAT III 600 V
Key Features
- Simply clip clamps onto wire insulation
- Green LED arrow clearly shows phase direction, perfect for visual reports
- Rotating LED indicator shows the phase sequence for a 3-phase power supply at a glance
- Intermittent beeps signal positive phase; continuous tone signals reverse phase
- Magnetic base allows the instrument to be secured on a distribution panel
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Power Supply | AA 70 mm (2.76 in)W × 75 mm (2.95 in)H × 30 mm (1.18 in)D, 200 g (7.1 oz), Cord length : 0.7 m (2.30 ft)alkaline battery(LR6) x 2, Continuous use: 200 hr |
| Included Accessories | Carrying case ×1, Strap ×1, Spiral tube ×1, Instruction manual ×1, AA alkaline battery(LR6) x 2 |
| Display |
Phase detection Positive; 4 LEDs lit in clockwise order and the buzzer sounds intermittently, green arrow lights up Negative; 4 LEDs lit in counterclockwise order and the buzzer sounds continuously |
| Battery Check | Power ON lamp: lights up (Power ON), blinks (Battery LOW) |
| Measurement Function | Phase detection (positive and negative) |
| Operating Frequency | 45 Hz to 66 Hz |
| Auto Power Off | Auto shut off if no activity is detected after power is turned ON for 15 minutes |
| Object To Be Connected | 2.4 mm (0.09 in) to 17 mm (0.67 in) of insulated wiring |
| Voltage Range | 70 to 600 V AC (50/60 Hz) (sine wave,continuous input) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
