IR4016

IR4016

Hioki

Analogue HiTester

Reliable and Efficient Insulation Testing in the Field

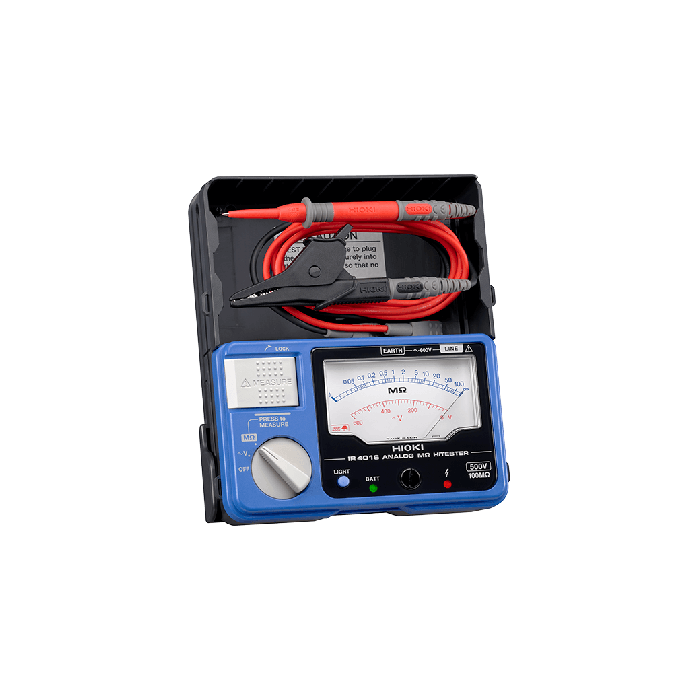

Hioki insulation resistance testers or megohmmeters feature all-in-one designs including built-in rugged cases and test lead storage compartments. The IR4016-20 is a single-range, 500 V/100 MΩ analogue insulation resistance tester with efficient functions and features to help shorten work time associated with field insulation testing.

CAT III 600 V

Key Features

  • Single range testing voltage of 500 V
  • Test insulation resistance up to 100 MΩ
  • Built tough to withstand a 1-meter drop onto a concrete floor
  • Bright LED luminous scale
  • Check for live circuits and battery status
  • Integrated hard case for quick and easy storage without disconnecting the leads
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Power Supply LR6 (AA) alkaline batteries ×4, Continuous use: 20 hours (no load)
Included Accessories Test Lead L9787 ×1, LR6 (AA) alkaline batteries ×4, Instruction manual ×1, Shoulder strap ×1
Other Functions Bright LED luminous scale, Drop proof (on concrete, 1 m/1 time), Battery check, Live circuit check, Auto discharge
Rated Output Voltage 500 V DC
AC Voltage range

0 to 600 V (50/60 Hz), ±5 % of maximum scale value accuracy,
500 kΩ or more input resistance

Accuracy 1st effective measuring range MΩ (±4% rdg.) ±2 % of scale length, 1 M to 50 MΩ
Lower Limit Resistance 0.5 MΩ (measurement resistance value to maintain testing voltage)
Overload Protection 600 V AC (10 sec.)
More Information
Attribute Value
Data Sheet Click here to view
