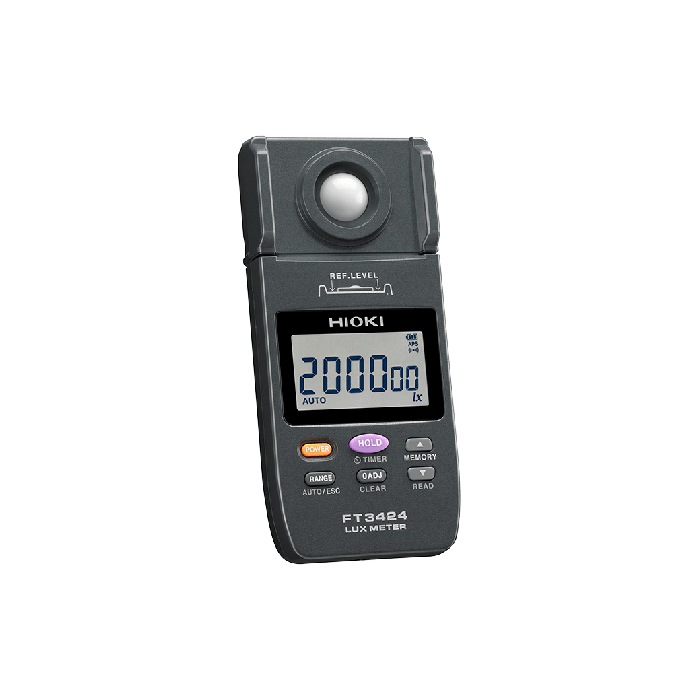

FT3424
FT3424
Hioki
Lux Meter
Light Meter with Broad Coverage from Low to High Illuminance
The FT3424 is a light meter designed for an extensive range of applications involving illumination equipment, lighting work and facility management. Capable of testing even LED lighting, the FT3424 provides five measurement ranges, 20 lx to 200 000 lx, to support a wide range of luminance levels.
Key Features
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Power Supply | LR6 Alkaline battery ×2 (continuous use 300 hours), Max. rated power 500 mVA, or R6 Manganese battery ×2, or USB bus power (5 VDC) |
| Included Accessories | Instruction Manual ×1, LR6 Alkaline battery ×2, Sensor cap (with strap) ×1, Carrying case (soft) ×1, Strap (for instrument) ×1, USB cable (0.9 m/2.95 ft) ×1, CD (USB driver, dedicated computer application software, and communications specifications) ×1 |
| Response Time | Auto range: within 5 seconds, Manual range: within 2 seconds |
| Dimensions and Weight | 78 mm (3.07 in)W × 170 mm (6.69 in)H × 39 mm (1.54 in)D, 310 g (10.9 oz) (including the batteries) |
| Other Functions | Timer hold function, Memory function (Up to 99 measured data can be saved.), Hold, Auto power off function, Buzzer sound, Backlight, Zero adjustment |
| Standards | DIN 5032-7: 1985 class B, JIS C 1609-1: 2006 general AA class |
| D/A Output |
Output level: 2 V/range f.s. (2.5 V is output when the range f.s. is exceeded.) Output accuracy: ±1% rdg. ±5 mV (at display count) |
| Linearity | ±2% rdg. (Multiply by 1.5 for display values in excess of 3000 lx.) |
| Light Receiving Element | Silicon photo diode |
| Range Selection | Auto/ Manual |
| Accuracy Guarantee For Temperature And Humidity | 21 °C to 27 °C (69.8 °F to 80.6 °F), 75% rh or less (non-condensing) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
