FT3425
FT3425
Hioki
Lux Meter
High Reliability LUX METER Series, Complies with DIN Class B, Compatible with LED/OLED Lighting
High Reliability LUX METER Series, Complies with DIN Class B, Compatible with LED/OLED Lighting

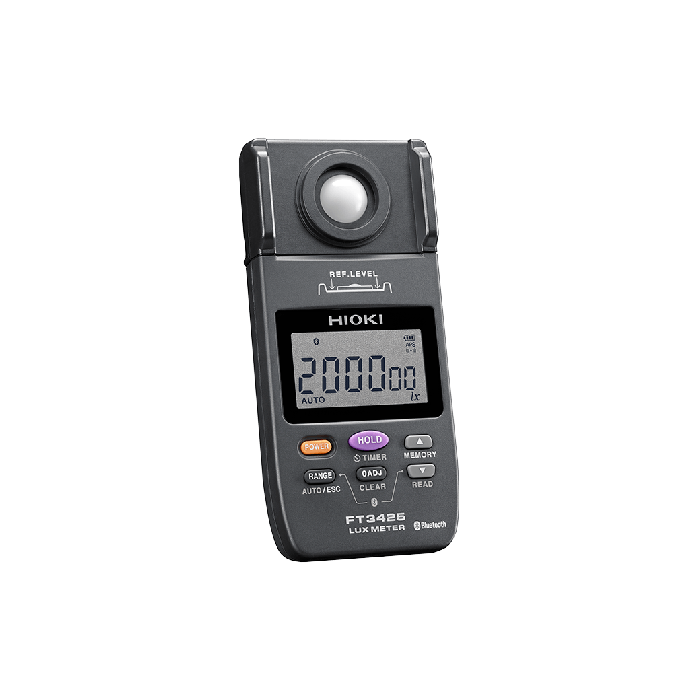

The FT3425 is a light meter designed for an extensive range of applications involving illumination equipment, lighting work and facility management. Capable of testing even LED lighting, the FT3425 provides five measurement ranges, 20 lx to 200 000 lx, to support a wide range of luminance levels, and comes built in with Bluetooth® wireless technology.
How to Conduct Lighting Inspections: Using the Extension Cart to Easily Conduct Multi-point Tests
The FT3424 and FT3425 Lux Meters are supported by the Z5023 Extension Cart, which is built with casters to vastly improve the efficiency of making multi-point light inspections. When conducting final building inspections for proper illuminance, normally two inspectors are needed, and one is often required to stand and crouch repeatedly to capture the correct data. The Z5023 significantly saves both time and effort by enabling a single technician to do the job without the physical burdens.
Key Features
- Measured illuminance data is automatically sent to smartphone or tablet with Bluetooth® wireless technology
- Compatible with LED/OLED lighting
- Complies with DIN 5032-7:1985 class B and JIS C 1609-1:2006 general AA class
- Timer hold function lets you make measurements in remote locations while avoiding the effects of shadows and reflections
- Save up to 99 measured values in the instrument’s internal memory and transfer them to a computer later for improved work efficiency
- Data can be transferred to tablets and smartphones using Hioki’s dedicated free app "GENNECT Cross".
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Power Supply | LR6 Alkaline battery ×2, Max. rated power 500 mVA, or R6 Manganese battery ×2, or USB bus power (5 VDC) 300 hours (when using LR6 batteries, with Bluetooth® OFF), 80 hours (when using LR6 batteries, with Bluetooth® ON) |
| Included Accessories | Instruction Manual ×1, AA/LR6 Alkaline battery ×2, Sensor cap (with strap) ×1, Carrying case (soft) ×1, Strap (for instrument) ×1, USB cable (0.9 m/2.95 ft) ×1, CD (USB driver, dedicated computer application software, and communications specifications) ×1, Precautions Concerning Use of Equipment that Emits Radio Waves ×1 (only FT3425) |
| Interfaces | USB 2.0 (FT3424/FT3425), Bluetooth® 4.0LE (FT3425 only) |
| Response Time | Auto range: within 5 seconds, Manual range: within 2 seconds |
| Dimensions and Weight |
78 mm (3.07 in)W × 170 mm (6.69 in)H × 39 mm (1.54 in)D, |
| Other Functions | Timer hold function, Memory function (Up to 99 measured data can be saved.), Hold, Auto power off , Buzzer sound, Backlight, Zero adjustment |
| Standards | DIN 5032-7: 1985 class B, JIS C 1609-1: 2006 general AA class |
| D/A Output |
Output level: 2 V/range f.s. (2.5 V is output when the range f.s. is exceeded.) Output accuracy: ±1% rdg. ±5 mV (at display count) |
| Linearity | ±2% rdg. (Multiply by 1.5 for display values in excess of 3000 lx.) |
| Light Receiving Element | Silicon photo diode |
| Range Selection | Auto/ Manual |
| Accuracy Guarantee For Temperature And Humidity | 21 °C to 27 °C (69.8 °F to 80.6 °F), 75% rh or less (non-condensing) |
