MR8790
MR8790
Hioki

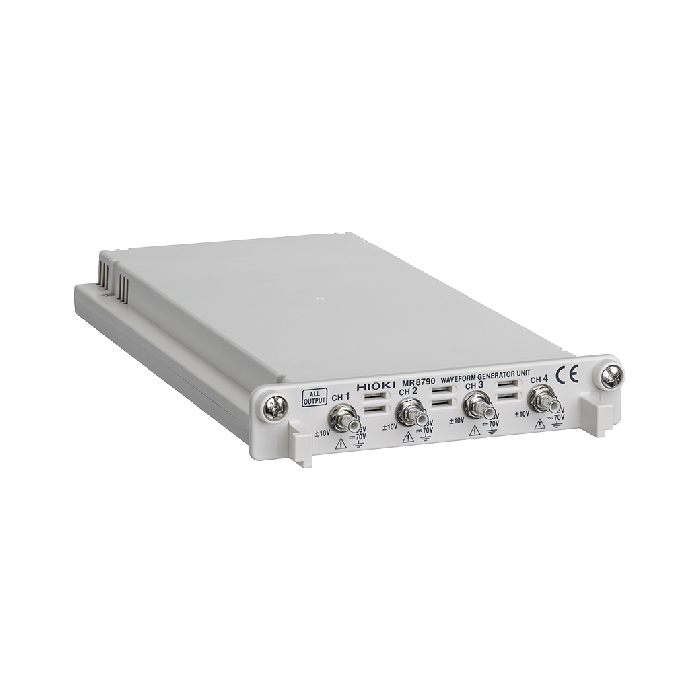

Waveform Generator Unit
Waveform Generator Input Module for Control Simulation Testing
The Waveform Generator Unit MR8790 is a plug-and-play module for Hioki Memory HiCorders that offers high-precision DC voltage output for generating signals that simulate voltage fluctuations at very low levels.
Key Features
- Output sine waves (20 kHz max.) and DC voltage signals up to 4 channels per unit
- Output signals up ±10V or 5mA
- For limited models only (Cannot be used for 8847, MR8847-01, MR8847-02, MR8847-03)
- Isolated between unit and output, and between all channels
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Output Voltage Range | -10 V to 10 V (Amplitude setting range: 0 V to 20 V p-p, Setting resolution: 1 mV) |
| Dimensions and Weight | 106 mm (4.17 in) W × 19.8 mm (0.78 in) H × 196.5 mm (7.74 in) D, 230 g (8.1 oz) |
| Accuracy |
Amplitude accuracy: ±0.25% of setting ±2 mV p-p (1 Hz to 10 kHz) |
| Output Terminal |
Number of channels: 4, SMB terminal (Output impedance: 1 Ω or less) |
| Output Mode | DC, Sine wave (Output frequency range: 1 Hz to 20 kHz) |
| Max. Output Current | 5 mA |
| Other | Self-test function (Voltage, Current) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
