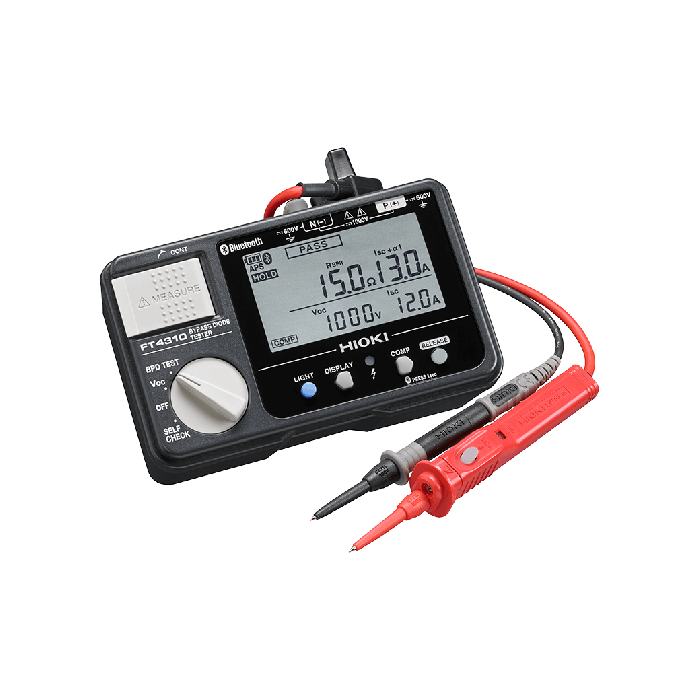

Hioki FT4310 Bypass Dioe Tester | APC Technology Group

FT4310

FT4310

Hioki

Bypass Diode Tester

Inspect Solar Panel Bypass Diodes for Opens and Shorts in Broad Daylight Without Covering Panels

Traditionally, bypass diodes can only be inspected for good working condition at night or when power is not being generated by the solar panels in order to verify that any applied current is guided past the solar cells. With the FT4310 Bypass Diode Tester, you can detect for open faults even when the sun is out without covering the panels. Also test for short-circuit faults and cell string losses.

Key Features

  • Test for open or short-circuit bypass diodes even during the day *
  • Easily test using the strings in the junction boxes *2
  • Save time - simultaneously measure all electrical parameters *3
  • Automatically transfer data wirelessly (Available for Android and iOS devices *4)

*1:Testing can also be performed at night. Testing for short-circuit faults can only be performed during the day.

*2:There is no need to climb onto the roof and dramatically improving work efficiency.

*3:Measure open-circuit voltage, short-circuit current, and bypass route resistance and display all three values at once.

*4:Automatically transfer data with Bluetooth® wireless technology

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Power Supply

LR6 (AA) alkaline battery×6, Maximum rated power 18 VA
Continuous operating time: 45 hours (Comparator, backlight, Bluetooth® OFF)

Measurement Items

Bypass diode comparator judgment, Bypass route resistor, Open-circuit voltage, Short-circuit current, Measurement (applied) current
Voc mode: Open-circuit voltage

Measurement accuracy

Open-circuit voltage: ±0.2% rdg. ±3 dgt. (at 0 to ±1000 V)
Short-circuit current: ±3% rdg. ±3 dgt. (at 0.0 to 15.0 A)
Bypass route resistance: ±5% rdg. ±5 dgt. (at 0.0 to 15.0 Ω, During pure resistance measurement)

Dimensions and Weight

152W×92H×69D mm (5.98 W × 3.62 H × 2.72 D in)
650 g (22.9 oz) (including batteries, excluding test leads)

Other Functions Displays the number of bypass diode measurements, Automatic polarity judgment function, Comparison display, Auto hold, Live circuit indicator, Buzzer sounds, Backlight, Comparator, Battery indicator, Auto power off, Bluetooth® Smart
Dustproof and Waterproof IP40 (EN60529)
Measurement Method

Short-circuit and pulse voltage application
Measurement items Voc mode: Open-circuit voltage

Possible Number of Measurements

3000 times (Comparator, backlight, Bluetooth® OFF)
LR6 Alkaline battery × 6

Interface Bluetooth® 4.0LE, Supports devices: iOS, Android TM smartphone/ tablet
Measurement Objects

Crystal system string
Open-circuit voltage: 1000 V DC or less, Rated current: 2 A to 12 A DC

Caution: The FT4310 cannot measure strings that are installed in parallel or complex strings that are installed in combination.
