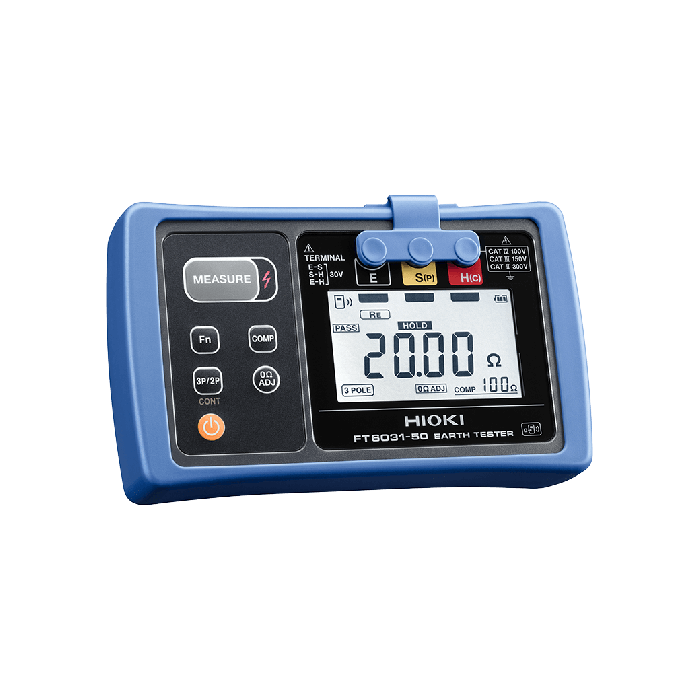

FT6031-50
FT6031-50
Hioki
Earth Tester
This product is available in 5-7 weeks
Tough and Ready for the Field - IP67 Dustproof and Waterproof
Earthing or grounding of electrical equipment is essential to maintain safety, protecting lives, as well as to prevent damage to equipment. The FT6031-50 is a IP67 dustproof and waterproof two-pole or three-pole ground resistance tester with large, easy-to-read display, highly sensitive earthing rods, and innovative cable winder that significantly reduces the amount of time needed to complete earth resistance tests.
Key Features
- Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT
- Cross or to an Excel® file. (Wireless Adapter Z3210 is necessary)
- Excellent noise resistance
- IP67 protected – top of the industry
- Test all ground types from Class A to Class D with a single meter
- Wide 0Ω to 2000Ω measurement range
- Minimize cabling time with innovative earthing rods and cable winder
Contact our expert team
We work closely with our technology partners to offer customers the best
lead time and prices we can achieve.
Contact our team for the latest availability and pricing information on
0330 313 3220, or use the request a quote button below and a member
of our team will be in touch.
Price
£428.05
| Attribute | Value |
|---|---|
| Power Supply | LR6 Alkaline battery ×4 |
| Included Accessories | Auxiliary Earthing Rod L9840 (2 piece set) ×1, Measurement Cable L9841 (black 4 m) ×1, Measurement Cable L9842-11 (yellow 10 m, equipped with winder) ×1, Measurement Cable L9842-22 (red 20 m, equipped with winder) ×1, Carrying Case C0106 ×1, Protector ×1, LR6 Alkaline battery ×4, Instruction manual ×1 |
| Measurement accuracy | ±1.5% rdg ±8 dgt (20 Ω) / ±1.5% rdg ±4 dgt (200 Ω & 2000 Ω) |
| Dimensions and Weight | 185 mm (7.28 in)W × 111 mm (4.37 in)H × 44 mm (1.73 in)D, 570 g (20.1 oz.) (including batteries and protector, excluding terminal covers and other accessories) |
| Other Functions | Live wire warning, zero-adjustment, continuous measurement mode, wireless communication (with Z3210 connected), comparator |
| Dustproof and Waterproof | IP65/IP67 (EN60529) |
| Resistance Range | 20 Ω (0 Ω〜20.00 Ω) / 200 Ω (0 Ω〜200.0 Ω) / 2000 Ω (0 Ω〜2000 Ω) |
| Measurement Method | Two-electrode method/three-electrode method (switchable) |
| Possible Number of Measurements | 500 times (measurement conditions: three-electrode method, measuring 10 Ω at 10-second intervals without Z3210 installed) |
| Earth Voltage | 0〜30.0 V rms / ±2.3% rdg ±8 dgt (50 Hz/60 Hz) / ±1.3% rdg ±4 dgt (DC) |
| Allowable Earth Potential | 25.0 V rms (DC or sine wave) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
