L2002

This product is available in 5-7 weeks

Measuring Cable with Clamp Terminals for Hioki BT4560 and Hioki BT4560-50

Key Features

• Measurement frequency range: DC to 1050 Hz
• Maximum rated voltage: 30 V peak
• Maximum rated current: 2.5 A peak
• Cable length: Approx. 1500 mm (59.06 in)
• Mass: Approx. 220 g (7.8 oz)
• Cable type: 50 Ω Coaxial cable
• Tip structure: Gold-plated, spherical surface, replaceable tip pins
• Pin distance: 6.3 mm (0.25 in)
• Operating temperature: 0°C to 40°C (32°F to 104°F)
• Operating humidity: 80% RH or less (no condensation)

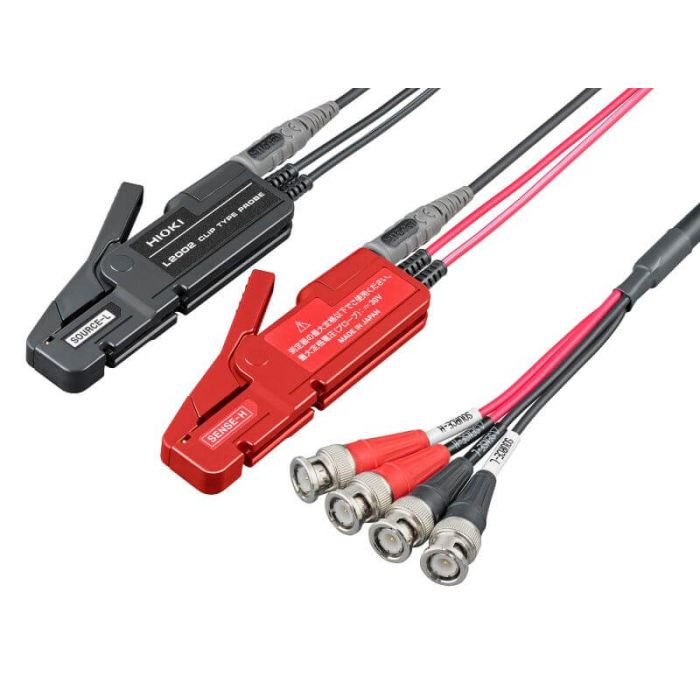

The Hioki L2002 Clip Type Probe is designed for precise four-terminal measurements, making it ideal for testing laminate-type batteries and other low-resistance materials. The probe features a positioning stopper to ensure consistent clipping depth, enhancing measurement accuracy. With a flexible coaxial cable design and replaceable tip pins, the L2002 offers durable and reliable performance in a variety of environments.
