3244-60
3244-60
Hioki
Card HiTester

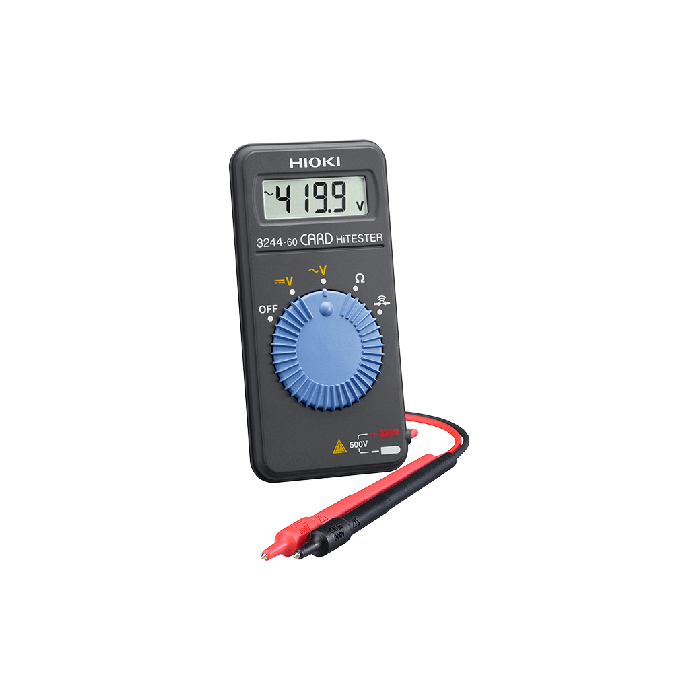

Card-style Pocket Digital Multimeter for General Electrical Maintenance and Testing
The 3244-60 is a card-style digital multimeter for general electrical maintenance and testing, and includes gold-plated test leads for better contact. Insulated test pin sleeves also prevent short-circuits.
CAT III 300 V, CAT II 600 V
Key Features
- Better contact test leads with 15 mm gold-plated tip pin
- Only 9.5 mm(0.37 in) thick and 60 g(2.1 oz) in weight
- Full auto-ranging function and automatic power saving function
- Overload protection to 500 V at resistance or continuity functions
Buy Online
| Attribute | Value |
|---|---|
| Lead Time |
Usually available in 5-7 weeks |
| Power Supply | CR2032 coin battery (150h) |
| Display | Digital LCD (4199 digits) |
| Dimensions and Weight | 55 × 109 × 9.5 mm (60 g) |
| Other Functions | Auto power save |
| Accessories | Carrying case, Battery, Sleeves |
| DC Voltage range | 419.9 mV - 500 V (±0.7%) |
| AC Voltage range | 4.199 V - 500 V (±2.3%) |
| Resistance range (2-terminals) | 419.9 Ω - 41.99 MΩ (±2.0%) |
| Continuity Test | Detection at 50 Ω ±40 Ω |
| Display Refresh Rates | 2.5 times/sec |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
