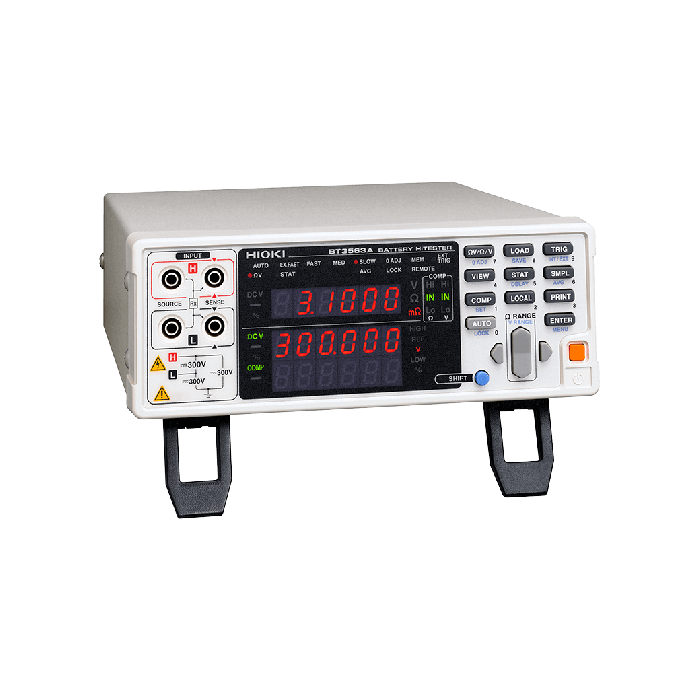

main product photo

Skip to the beginning of the images gallery

Fully Automated Production Line Testing of Large Packs for xEVs or Large Packs of up to 300 V

Key Features

Simultaneous measurement of internal resistance and open circuit voltage.
Fully automated production line testing of large packs for xEVs or large packs of up to 300 V.
Measure from 0 Ω to 3.1 kΩ (minimum resolution 0.1 μΩ)
Resistance measurement ranges: 3 mΩ/30 mΩ/300 mΩ/3 Ω/30 Ω/300 Ω/3 kΩ
Measure from 0V DC to ±300 V DC (minimum resolution 10 μV)
Voltage measurement ranges: 6 V/60 V/300 V
Equipped with LAN

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote

More Information
Attribute	Value
Power Supply	100 to 240 V AC, 50 Hz/60 Hz, 35 VA max.
Interfaces	LAN (TCP/IP, 10BASE-T/100BASE-TX) RS-232C (Max. 38.4 kbps, Available as printer I/F) EXT I/O (37-pin Handler interface) Analog output (DC 0 V to 3.1 V)
Sampling Rate	Ω or V (60 Hz): 4 ms (EX.FAST), 12 ms (FAST), 35 ms (MEDIUM), 150 ms (SLOW) ΩV (60 Hz): 8 ms (EX.FAST), 24 ms (FAST), 70 ms (MEDIUM), 253 ms (SLOW) Ω or V (50 Hz): 4 ms (EX.FAST), 12 ms (FAST), 42 ms (MEDIUM), 157 ms (SLOW) ΩV (50 Hz): 8 ms (EX.FAST), 24 ms (FAST), 84 ms (MEDIUM), 259 ms (SLOW)
Resistance Measurement Ranges	3 mΩ (Max. display: 3.1000 mΩ, resolution: 0.1 μΩ, measurement current: 100 mA) 30 mΩ (Max. display: 31.000 mΩ, resolution: 1 μΩ, measurement current: 100 mA) 300 mΩ (Max. display: 310.00 mΩ, resolution: 10 μΩ, measurement current: 10 mA) 3 Ω (Max. display: 3.1000 Ω, resolution: 100 μΩ, measurement current: 1 mA) 30 Ω (Max. display: 31.000 Ω, resolution: 1 mΩ, measurement current: 100 μA) 300 Ω (Max. display: 310.00 Ω, resolution: 10 mΩ, measurement current: 10 μA) 3 kΩ (Max. display: 3.1000 kΩ, resolution: 100 mΩ, measurement current: 10 μA) Basic accuracy: ±0.5% rdg ±10 dgt (3 mΩ range), ±0.5% rdg ±5 dgt (30 mΩ range or more) Measurement frequency: 1 kHz ±0.2 Hz Measurement method: AC four-terminal method
Voltage Measurement Ranges	6 V (Max. display: 6.00000 V, resolution: 10 μV) 60 V (Max. display: 60.0000 V, resolution: 100 μV) 300 V (Max. display: 300.000 V, resolution: 1 mV) Basic accuracy: ±0.01% rdg. ±3 dgt.
Measurement Time	Response time: 10 ms

More Information
Attribute	Value
Data Sheet	Click here to view
