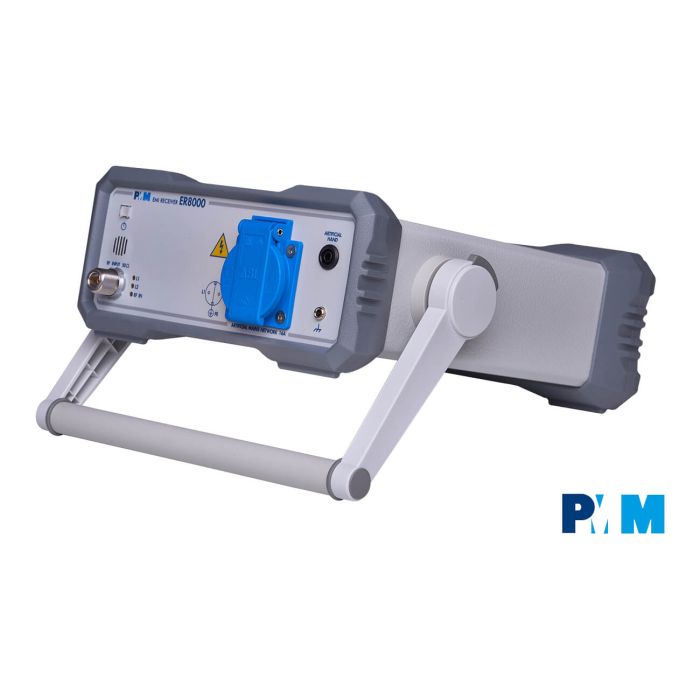

ER8000
ER8000
Narda Safety Test Solutions
FFT EMI Receiver With LISN
The Compact and Powerful EMI Receiver for Fast and Accurate Measurements
Flexibility and ease of use:
The ER8000 receiver stands out for its exceptional compactness, making it ideal for use in tight spaces. Despite its compact size, it offers exceptional flexibility and ease of use, making it accessible even to less experienced users.
High performance and regulatory compliance:
The high performance of the ER8000 makes it the ideal tool for the precise measurement of conducted and radiated emissions. Full compliance with CISPR 16-1-1 ensures maximum reliability of the results obtained.
Unprecedented measurement speed:
Thanks to its state-of-the-art FFT architecture, the ER8000 boasts exceptionally fast analysis times: just 2 seconds in band B and 1 minute in bands C+D. This feature allows you to optimize the measurement process and increase productivity.
Efficient front-end and versatile interface:
The ER8000's front-end features an efficient preselector that guarantees exceptional performance in terms of sensitivity and selectivity. The intuitive user interface and USB port for controlling external devices such as LISNs and switching boxes complete the equipment of this versatile instrument.
Applications in design and certification:
The ER8000 is the ideal tool for performing emission measurement tests and characterizing EUTs (Equipment Under Test) quickly and efficiently. Its flexibility makes it suitable for use both in the design laboratory during product development and in an EMC laboratory for the certification of EMI measurements.
Two frequency ranges for different needs:
The ER8000 is available in two different frequency ranges:
- 9 kHz to 30 MHz (ER8000 option 00)
- 9 kHz to 3 GHz (ER8000 option 01)
Users can also upgrade from option 00 to option 01 at any time, ensuring maximum flexibility and scalability to meet specific needs.
Key Features
- Compliant with CISPR 16-1-1, MIL-STD-461, ANSI C63.2 and FCC
- Compliant with CISPR 14-1 when in conjunction with CA0010
- Conducted and radiated emission tests
- Direct analog to digital conversion up to 30 MHz
- Combination of EMI test receiver and spectrum Analyser
- Operates gapless FFT
- Very fast measuring time
- Built-in Lines Impedance Stabilisation Networks (LISN)
- User port for driving external LISNs and ancillaries
- Free PES PMM Emission Suite Software
- Robust, compact construction
- 140 dBμV (2 W) maximum input level without damage
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Range |
9 kHz to 30 MHz (Opt.00) 9 kHz to 3 GHz (Opt.01) Resolution: 1 Hz; 100 Hz above 30 MHz Frequency accuracy: < 2.5 ppm |
| RF Input |
Zin 50 Ω, N fem. VSWR
Attenuator: 0 dB to 45 dB (5 dB steps) Preamplifier gain: 20 dB; 10 dB above 30 MHz Low saturation preamplifier (after preselector) Pulse limiter: Built in (selectable) below 30 MHz |
| Max Input Level |
Sinewave AC: 140 dBμV (2 W); 137 dBμV (1 W) above 30 MHz Voltage pulse spectral density: 176 dBμV/MHz below 150 kHz; 130 dBμV/MHz below 30 MHz; 97 dBμV/MHz below 1 GHz Max. pulse voltage: 200V (≤ 20 μs) Max. DC voltage: 50V |
| Preselector |
Seven BP filters - 15 MHz BW to ADC) Frequency ranges: 9 kHz to 150 kHz - 30 MHz to 96.6 MHz tracking (Opt. 01) 150 kHz to 15 MHz - 96.6 MHz to 311 MHz tracking (Opt. 01) 15 MHz to 30 MHz - 311 MHz to 1000 MHz tracking (Opt. 01) 1 GHz to 3 GHz (Opt. 01) |
| IF Bandwidth |
6dB bandwidth: 100Hz, 300Hz, 1 kHz, 3 kHz, 10 kHz, 30 kHz, 100 kHz, 300 kHz, 1 MHz, 3 MHz CISPR 16-1-1: 200 Hz, 9 kHz, 120kHz, 1 MHz |
| Noise Level |
Preselector OFF, preamplifiers OFF: 9 kHz to 150 kHz (200 Hz RBW) - < -17 dBμV 0.15 MHz to 30 MHz (9 kHz RBW) - < 0 dBμV 30 MHz to 300 MHz (120 kHz RBW) - < 4 dBμV 300 MHz to 3 GHz (120 kHz RBW) - < 10 dBμV Displayed Average Noise level: Preselector ON, preamplifiers OFF: 9 kHz to 150 kHz (200 Hz RBW) - < -14 dBμV 0.15 MHz to 30 MHz (9 kHz RBW) - < 3 dBμV 30 MHz to 300 MHz (120 kHz RBW) - < 1 dBμV 300 MHz to 3 GHz (120 kHz RBW) - < 6 dBμV Displayed Average Noise level: Preselector ON, preamplifier ON: 9 kHz to 150 kHz (200 Hz RBW) - < -27 dBμV 0.15 MHz to 30 MHz (9 kHz RBW) - < -14 dBμV 30 MHz to 300 MHz (120 kHz RBW) - < -5 dBμV 300 MHz to 3 GHz (120 kHz RBW) - < 0 dBμV |
| Measurement Accuracy |
S/N > 20 dB: 9 kHz to 1 GHz ± 1.2 dB 1 to 3 GHz ± 1.6 dB |
| I/O Interface | USB 2.0 type B, RS-232 DB9, user port DB15 (drives PMM LISNs and accessories) |
| Operating Temperature | -5°C to 45°C |
| Power Supply | 10 - 15 Vdc, 2.5A with AC universal adapter/charger |
| Dimensions | 235 x 105 x 300 mm |
| Weight | 5.2 kg |
| RF Output | Internal receiver or BNC fem. |
| Specs |
Spectrum method analysis: FFT, size up to 8192, minimum overlap 89%
Detectors: Peak, Quasi-Peak, Average, RMS, RMS-Average, C-Average Smart Detector function above 30 MHz Level measuring time (hold time): CISPR 16-1-1 as default 2 μs to 120 s
Main measuring functions (With included PMM Emission Suite SW):
Demodulation: AM – FM Internal loudspeaker
Built-in LISN (compliant to CISPR 16-1-2) Frequency range: 150 kHz to 30 MHz Continuous rated output current: 16A Max permissible operating voltage: 250 Vac – 350 Vdc AC supply frequency range: DC to 60 Hz CISPR equivalent circuit: 50 Ω // (5 Ω + 50 μH) Test socket: Schuko 2P+E Line plug: IEC 60320 C20 Artificial hand: 4 mm plug |
| Scan Time |
Scan time - A band (9 to 150 kHz)(200 Hz RBW): SWEEP MODE (CISPR: presel. ON, QP): < 2 s (Ht 1 s) < 3 s (Ht 2 s) ANALYSER MODE (presel. OFF, PK, Ht lowest): < 50 ms (Ht 27 ms)
Scan time - B band (150 kHz to 30 MHz)(9 kHz RBW): SWEEP MODE (CISPR: presel. ON, QP): < 3 s (Ht 1 s) < 5 s (Ht 2 s) ANALYSER MODE (presel. OFF, PK, Ht lowest): < 10 ms (Ht 525 μs)
Scan time - C band (30 to 300 MHz)(120 kHz RBW): SWEEP MODE (CISPR: presel. ON, QP): < 20 s (Ht 1 s) < 40 s (Ht 2 s) ANALYSER MODE (presel. OFF, PK, Ht lowest): < 100 ms (Ht 32 μs)
Scan time - D band (300 MHz to 1 GHz)(120 kHz RBW): SWEEP MODE (CISPR: presel. ON, QP): < 40 s (Ht 1 s) < 80 s (Ht 2 s) ANALYSER MODE (presel. OFF, PK, Ht lowest): < 500 ms (Ht 32 μs)
Scan time - E band (1 to 3 GHz)(1 MHz RBW): SWEEP MODE (CISPR: presel. ON, QP): < 160 s (Ht 1 s) < 320 s (Ht 2 s) ANALYSER MODE (presel. OFF, PK, Ht lowest): < 400 ms (Ht 4 μs) |
