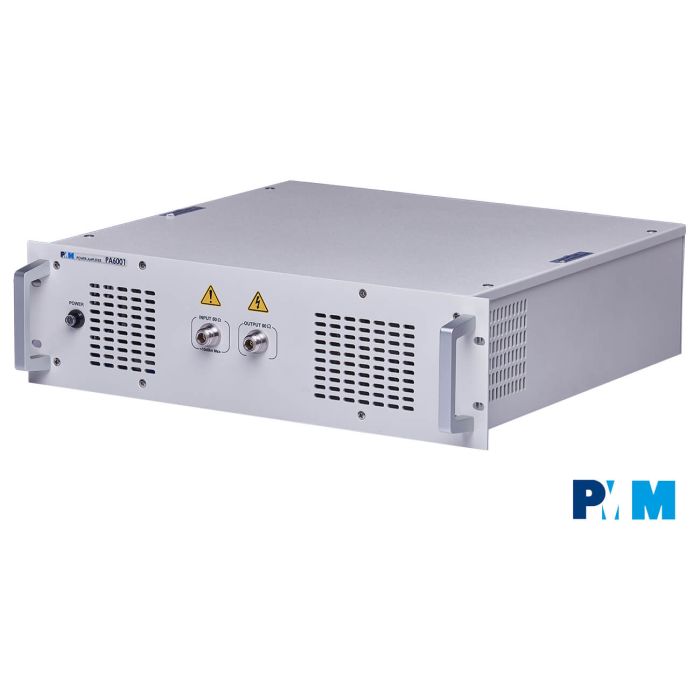

Power Amplifier 100 kHz – 250 MHz
The PA6001 power amplifier serves to boost the output power of RF signals, operating effectively within the frequency range spanning from 100 kHz to 250 MHz.
With its capability to amplify signals within this specific band of radio frequencies, it becomes a versatile tool in various applications requiring enhanced signal strength.
With a maximum output level of 40 watts, the PA6001 significantly augments the power of the input signal, providing substantial amplification to meet the demands of different scenarios.
Its versatility extends to a range of potential applications, including driving EMC test chambers for immunity testing, amplifying signals for precise antenna measurements, and bolstering RF signals used across diverse industrial applications.
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Bandwidth | 100 kHz – 250 MHz |
| Typical Output Power | 40 W |
| Power at 3dB Compression | 40 W min. up to 100 MHz / 35 W min. from 100 MHz to 250 MHz |
| Power at 1dB Compression | 35 W min. up to 100 MHz / 30 W min. from 100 MHz to 250 MHz |
| Harmonics Distortion | H2, H3 < -20 dBc for the output power at 1 dB compression limit |
| Class Type | Class A |
| Gain | 43 dB |
| Linear Power Gain Flatness | ± 3 dB max |
| Mismatch Tolerance | Infinite without damage |
| RF Input | Type N fem. (front or rear panel) – other connector type on request |
| Max Input Power | + 10 dBm max. |
| Input Impedance | 50 Ω / VSWR: 2:1max |
| Output Impedance | 50 Ω / VSWR: 2:1max |
| Dimensions | 438 x 410 x 125 mm (3U) / 17.2 x 16.1 x 4.9 in (3U) |
| Weight | 12 kg / 26.4 lb |
| Ambient Operating Temperature | 0 °C / + 35 °C |
| Room Temperature Storage | -20 °C / + 70 °C |
| Cooling | Forced air: 20 l/sec max. (self contained fans) |
| Power Voltage | 90 – 250 Vac, 47 – 63 Hz, single phase |
| Rated Current | 2 A @ 230 Vac |
| RF Output | Type N fem. (front or rear panel) – other connector type on request |
