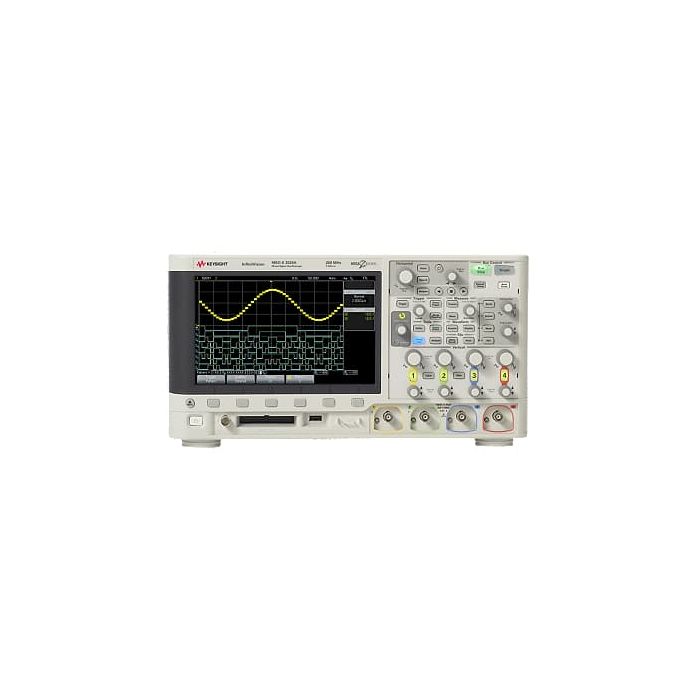

DSOX2014A

DSOX2014A

Keysight Technologies

100MHz Oscilloscope with 4 Analogue Channels

Sometimes you need a basic oscilloscope with a little more functionality — features like advanced waveform math, higher updates rates, or mixed-signal capabilities. All of this is available in the InfiniiVision 2000 X-Series to enable you to perform deeper analysis in an entry-level oscilloscope.

Leading Technology in a value-priced Oscilloscope – the DSOX2014A delivers 100 MHz of bandwidth,100 kpts memory and 4 analogue channels. Functionality rich, yet low on cost, Keysight's DSOX2014A is an oscilloscope that doesn't compromise on quality. Each model has measurement and standard software analysis capability that rivals oscilloscopes 3x the price.

Whats Included

  • Standard 5-year warranty (90 days for unserialized accessories)
  • Standard secure erase
  • One N2862B 150 MHz 10:1 passive probe per channel
  • Built-in help language support for English, Japanese, simplified Chinese, traditional Chinese, Korean, German, French, Spanish, Russian, Portuguese and Italian
  • Certificate of Calibration
  • Documentation CD
  • Interface language support GUI menus: English, Japanese, simplified Chinese, traditional Chinese, Korean, German, French, Spanish, Russian, Portuguese, Thai, Polish and Italian
  • Localized power cord
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Form Digital Storage
Range InfiniiVision
Series 2000 X-Series
Bandwidth 100 MHz
ADC Bits 8 bits
Max Memory Depth 1 Mpts
Max Sample Rate 2 GSa/s
Bandwidth Upgrades Available
Display Size 8.5-inch WVGA display
Special Triggers
  • Edge
  • Pulse width
  • Video
  • Protocol decodes
  • Edge then edge
  • Pattern
  • Runt pulse
  • Rise/fall time
  • Nth edge burs
Waveform Update Rate 200,000 wfms/s
Built In Instruments (Optional) Digital Channels, Digital Channels, 20 MHz Func Gen, 20 MHz Func Gen, 5-digit Counter, 5-digit Counter, 3-digit DVM, 3-digit DVM
Protocol Trigger & Decodes Optional&&I²C, SPI, UART and CAN, LIN (optional)
Channels 4
More Information
Attribute Value
Data Sheet Click here to view
