Bird

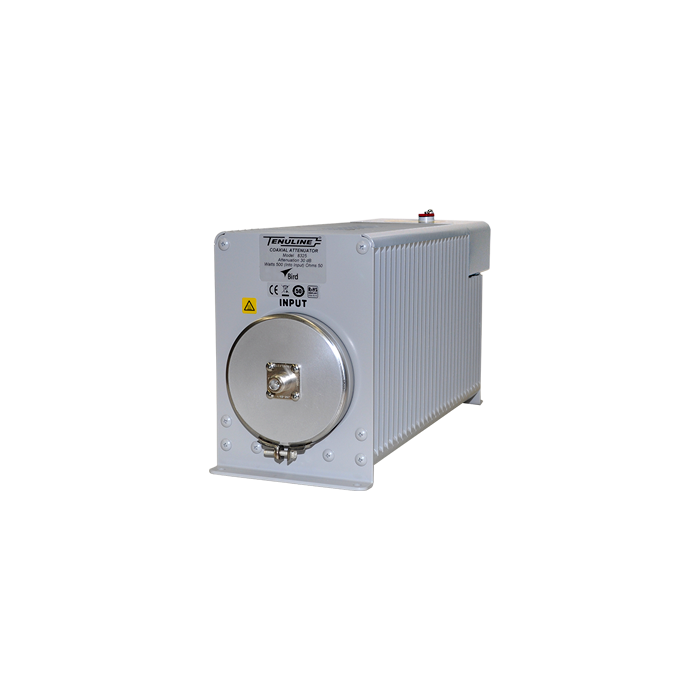

500 Watt, Oil-Cooled RF Attenuator

The 8325 RF Power Attenuator is a valuable and reliable accessory for reducing power levels and VSWR, for isolating components under test, for harmonic signal analysis, and as comparison standards. Bird's RF attenuators are world renowned for their high-quality, robust construction and conservative power ratings.
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

8325 Specifications

  • Easy to Use
  • Rugged reliability provides years of trouble free use
More Information
Attribute Value
Product Brand Name 500 Watt, Oil-Cooled Attenuator
Manufacturer Bird
Housing surface finish Gray Powder Coat
Absolute Accuracy ±0.5 dB (Calibration Data supplied for 30, 100, 200, 300, 400, and 500 MHz which is accurate to ±0.2 dB)
Attentuation Value 30 - 30 dB
Power Rating 500 W continuous
VSWR and Frequency Range Input 1.1 max. DC - 500 MHz
Coolant 0.9 gal. (3.4 liters) Refined Mineral Oil
Operating Position Horizontal only
Operating Temperature -40 to +45°C (-40 to +113°F)
Connectors N, (F)
Dimensions 17-1/2" x 5-15/16" x 8-1/2"(445 x 151 x 216 mm)
More Information
Attribute Value
Data Sheet Click here to view
