8353A030-10
8353A030-10
Bird

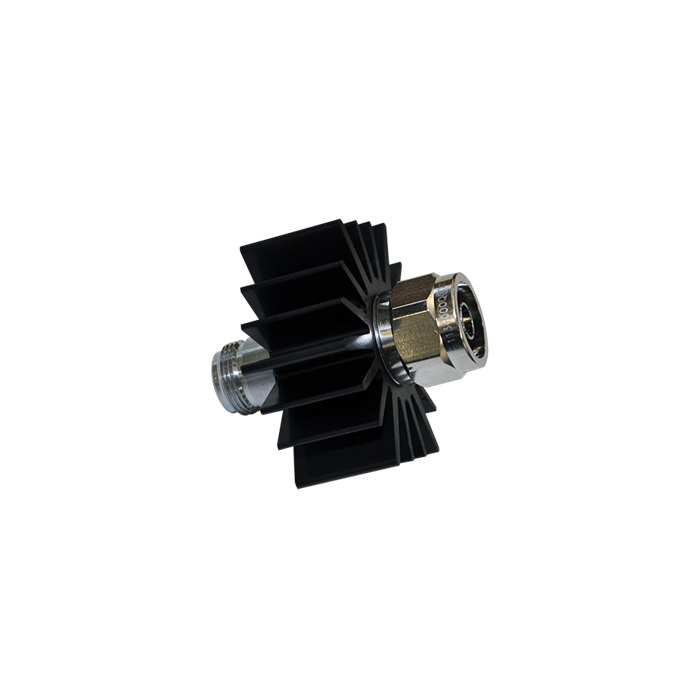

10W, 40-4000 MHz, Bi-Directional RF Attenuator
8353A030-10, 10 Watt RF Power Attenuator is world renowned for it's high-quality, robust construction and conservative power ratings. The use of non-magnetic materials and plating provide naturally lower inter-modulation performance and safety when used in high magnetic fields.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 10 Watt, Bi-Directional Attenuator |
| Manufacturer | Bird |
| Impedence Ohm | 50.0000 |
| Housing surface finish | Black Anodized |
| Attentuation Value | 30dB, +1.5dB, -0.5dB |
| Power Rating | 10 W |
| VSWR and Attenuation Accuracy | 1.20:1 Max. |
| VSWR and Frequency Range | 40-4000 MHz |
| Coolant | Dry (Convection-Cooled) |
| Operating Position | Any |
| Maximum AC Voltage Measurement | None |
| Operating Temperature | -10 to +50 °C (-23 to +4.4 °F) |
| Connectors | N (M) -Input, N (F) -Output |
| Dimensions | 2.2" L x 2.3" Dia., (55.88 x 58.42 mm) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
