8329-300-4K
8329-300-4K

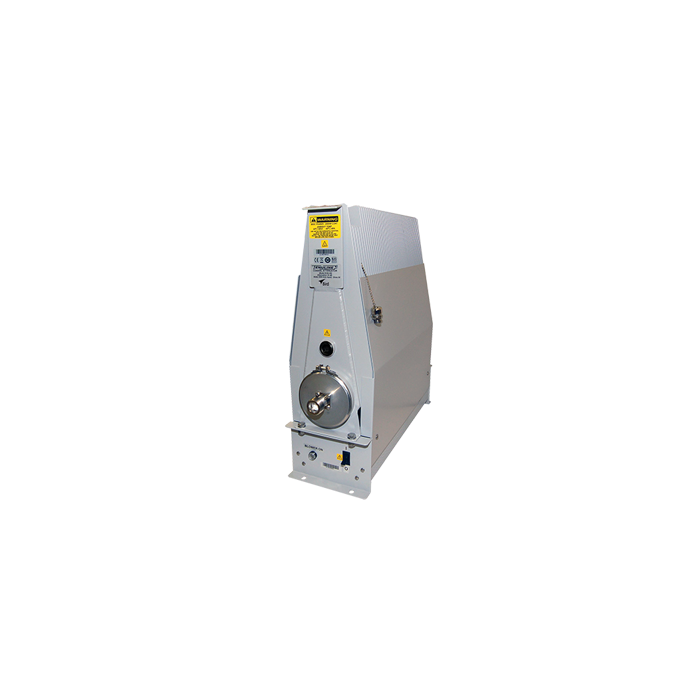

Bird
2kW, Oil-Cooled RF Attenuator
8329-300, Tenuline® RF Power Attenuators are a valuable and reliable accessory for reducing power levels and VSWR, for isolating components under test, for harmonic signal analysis, and as comparison standards. Bird's RF attenuators are world renowned for their high quality, robust construction and conservative power ratings.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
8329-300-4K Specifications
- Easy to Use
- Rugged reliability provides years of trouble free use
- Incorporates either a BA-300 Series 115 VAC or 230 VAC Blower unit
| Attribute | Value |
|---|---|
| Product Brand Name | 4000 W, Oil-Cooled Attenuator with 115 VAC or 230 VAC Blower Unit |
| Manufacturer | Bird |
| Housing surface finish | Gray Powder Coat |
| Absolute Accuracy | ±0.5 dB (Calibration Data supplied for 30, 100, 200, 300, 400, and 500 MHz which is accurate to ±0.2 dB) |
| Attentuation Value | 30 - 30 dB |
| Power Rating | 4 KW continuous with blower on, 1000 W with blower off |
| VSWR and Frequency Range | DC to 500 MHz @ Input 1.1 max. |
| Coolant | 2.9 gal. (11 liters) Silicone Oil with forced-air cooling |
| Operating Position | Horizontal Only |
| Operating Temperature | -40 to +45 °C (-40 to +113 °F) |
| Connectors | LC (F) -Input, N (F) -Output |
| Dimensions | 23-15/16" x 7-1/8" x 22-1/16"(596 x 181 x 560 mm) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
