Bird

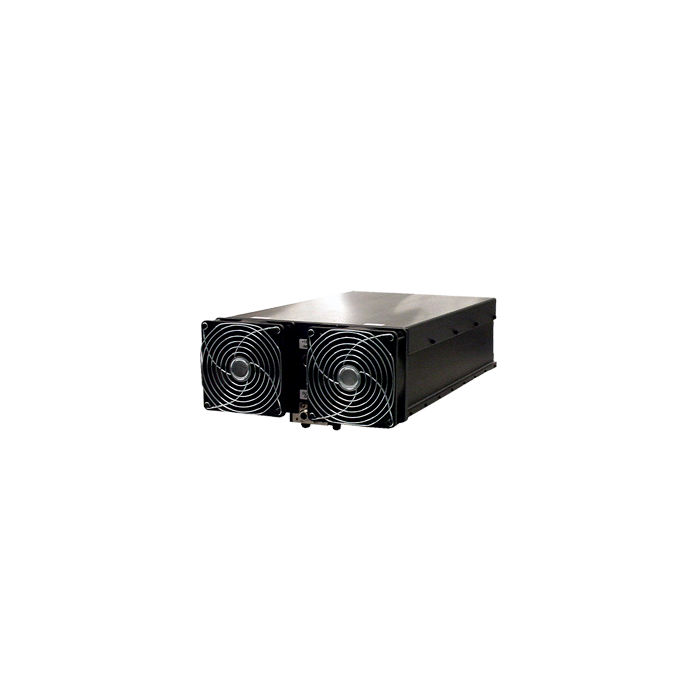

1.5kW, Uni-Directional RF Attenuator

1500-WA Series, 1500 Watt RF Power Attenuators are a valuable and reliable accessory for reducing power levels, for isolating components under test, for harmonic signal analysis, and as comparison standards. They are world renowned for their high-quality, robust construction and conservative power ratings.
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

1500-WA Series Specifications

  • Frequencies up to 2.4 GHz.
  • Fully shielded against production of extraneous radiation.
  • Rugged construction.
  • Broadband operation.
  • Other attenuation values may be available upon request.
More Information
Attribute Value
Product Brand Name 1500 Watt Uni-Directional RF Attenuators
Manufacturer Bird
Relative Humidity 95% non-condensing
Impedence Ohm 50.0000
Housing surface finish Black Anodized Aluminum
Connector Gender M/F - Male/Female, F/F - Female/Female
Attentuation Value 10 - 10 db, 20 - 20 db, 30 - 30 dB
Power Rating 1500 W
VSWR and Frequency Range 1.10:1 from DC to 1 GHz 1.25:1 from 1 to 2.4 GHz
Coolant Dry, Convection Cooled
Operating Position Any
PIM -110 dBc Min.
Maximum AC Voltage Measurement 115/203V AC Inputs
Operating Temperature -40 to 40 °C (-40 to 104 °F)
Connectors N - N, E - 7/16 DIN
Dimensions 20.4” x 10.7” x 5.9”(519 x 272 x 150 mm)
More Information
Attribute Value
Data Sheet Click here to view
