Bird

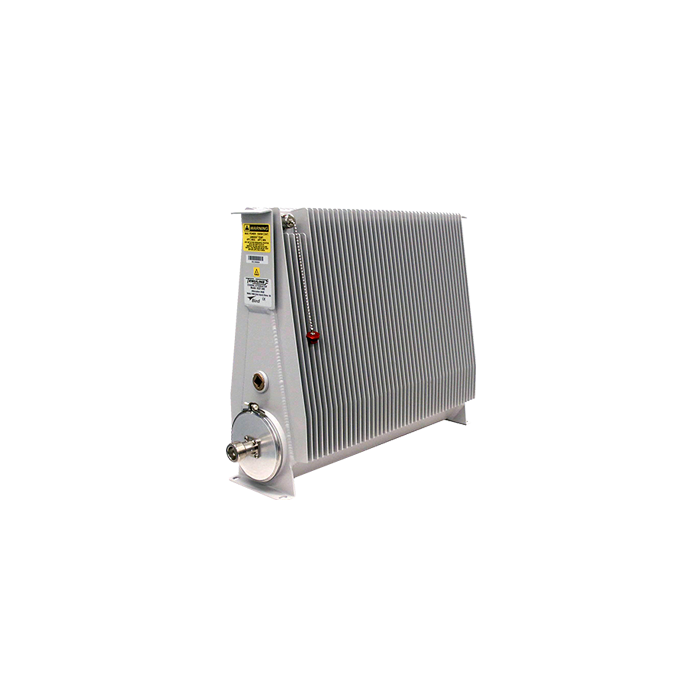

1kW Oil-Cooled RF Attenuator
8327-300, Tenuline® RF Power Attenuators are a valuable and reliable accessory for reducing power levels and VSWR, for isolating components under test, for harmonic signal analysis, and as comparison standards. Bird's RF attenuators are world renowned for their high-quality, robust construction and conservative power ratings.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
8327-300 Specifications
- Easy to Use
- Rugged reliability provides years of trouble free use
| Attribute | Value |
|---|---|
| Product Brand Name | 1kW Oil-Cooled Attenuator |
| Manufacturer | Bird |
| Housing surface finish | Gray Powder Coat |
| Absolute Accuracy | ±0.5 dB (Calibration Data supplied for 30, 100, 200, 300, 400, and 500 MHz which is accurate to ±0.2 dB) |
| Attentuation Value | 30 - 30 dB |
| Power Rating | 1 kW continuous |
| VSWR and Frequency Range | DC to 500 MHz @ Input 1.1 max. |
| Coolant | 2.9 gal. (11 liters) Refined Mineral Oil |
| Operating Position | Horizontal only |
| Operating Temperature | -40 to +45 °C (-40 to +113 °F) |
| Connectors | LC (F) -Input, N, (F) -Output |
| Dimensions | 23-15/16" x 7-1/8" x 17-3/16"(596 x 181 x 437 mm) |
