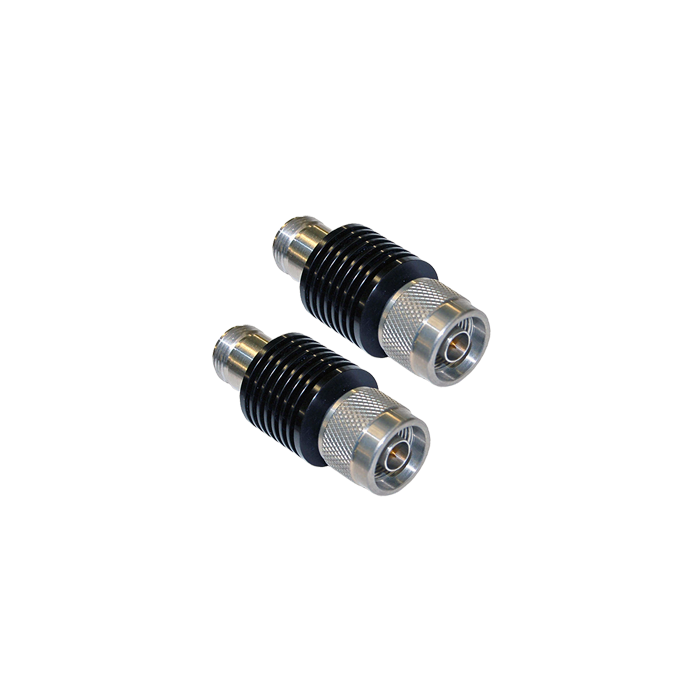

10-6A Series
10-6A Series
Bird
10 Watt - 6 GHz, Bi-Directional RF Attenuators
10-6A Series, 10 Watt RF Power Attenuators are a valuable and reliable accessory for reducing power levels, for isolating components under test, for harmonic signal analysis, and as comparison standards. They are world renowned for their high-quailty, robust construction and conservative power ratings.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
10-6A Series Specifications
- Self cooling design needs no cooling plate.
- Frequencies up to 6 GHz.
- Fully shielded against production of extraneous radiation.
- Rugged construction.
- Broadband operation.
- Other attenuation values available upon request.
- Models to cover all LTE frequencies.
| Attribute | Value |
|---|---|
| Product Brand Name | 10 Watt, 6 GHz Bi-Directional RF Attenuators |
| Manufacturer | Bird |
| Relative Humidity | 95% non-condensing |
| Impedence Ohm | 50.0000 |
| Housing surface finish | Stainless Steel |
| Connector Gender | M/F - Male/Female |
| Attentuation Value | 03 - 3 db, 06 - 6 db, 10 - 10 db, 20 - 20 db, 30 - 30 dB |
| Power Rating | 10 W |
| VSWR and Frequency Range | 1.20:1 from DC to 6 GHz |
| Coolant | Dry, Convection Cooled |
| Operating Position | Any |
| PIM | -110 dBc Min. |
| Maximum AC Voltage Measurement | None |
| Operating Temperature | -40 to 40 °C (-40 to 104 °F) |
| Connectors | A - SMA, N - Type N |
| Dimensions | 2.5” x 0.9” Dia. (64 x 23 Dia. mm) |
