Bird
3 Watt, Bi-Directional BNC RF Attenuator Kit

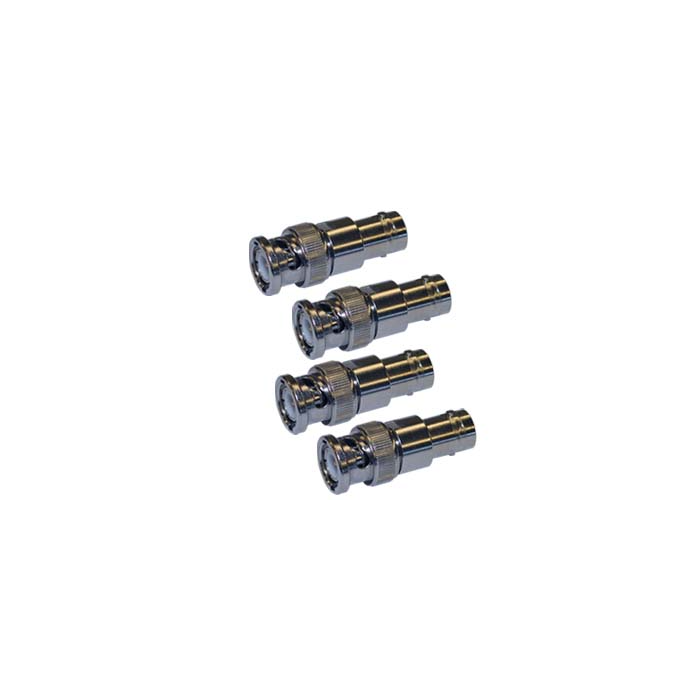

3-A-MFB-K1, 3 Watt RF Power Attenuator Kit consists of four BNC male/female connector attenuators each rated at 3, 6, 10, and 20 dB values. Included is a high impact resistant plastic case with pre-cut foam.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
3-A-MFB-K1 Specifications
- Bi-Directional for maximum convenience -Use either connector for input
- High impact plastic case with foam insert for each attenuator
| Attribute | Value |
|---|---|
| Product Brand Name | 3 Watt, BNC RF Attenuator Kit |
| Manufacturer | Bird |
| Relative Humidity | 95% non-condensing |
| Impedence Ohm | 50.0000 |
| Housing surface finish | Tri-Alloy |
| Attentuation Value | 03 - 3 db, 06 - 6 db, 10 - 10 db, 20 - 20 dB |
| Power Rating | 3W |
| VSWR and Frequency Range | 1.10:1 from DC to 1 GHz 1.25:1 from 1 to 4 GHz |
| Coolant | Dry, Convection Cooled |
| Operating Position | Any |
| PIM | -110 dBc Min. |
| Maximum AC Voltage Measurement | None |
| Operating Temperature | -40 to 40 °C (-40 to 104 °F) |
| Connectors | BNC |
| Dimensions | 6.50" x 1.69" x 4.63"(165.1 x 42.93 x 117.6 mm) |
