8353A040-50
8353A040-50
Bird RF
50W, 40-4000 MHz, Uni-Directional RF Attenuator

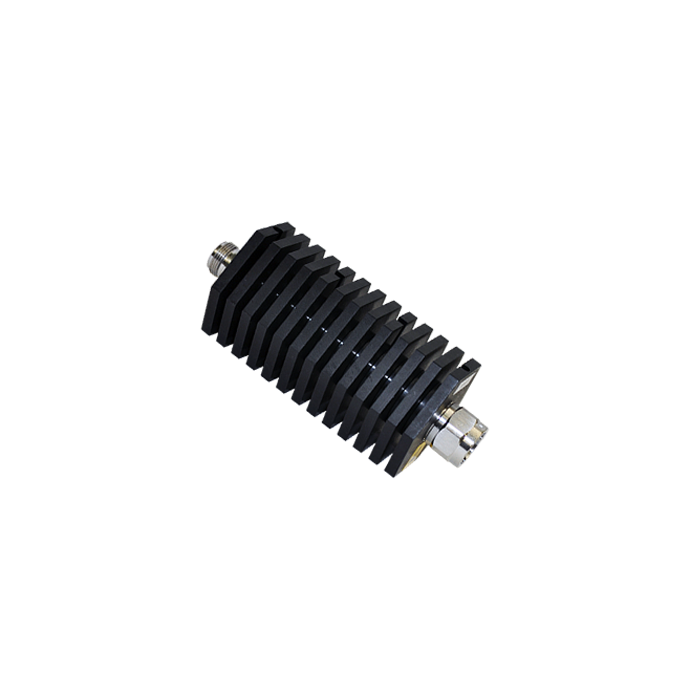

8353A040-50, 50 Watt RF Power Attenuator is world renowned for it's high-quality, robust construction and conservative power ratings. The use of non-magnetic materials and plating provide naturally lower inter-modulation performance and safety when used in high magnetic fields.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 50 Watt, Uni-Directional Attenuator |
| Manufacturer | Bird |
| Impedence Ohm | 50.0000 |
| Housing surface finish | Black Anodized |
| Attentuation Value | 40 dB ± 2.0 dB |
| Power Rating | 50 W |
| VSWR and Attenuation Accuracy | 1.20:1 Max. |
| VSWR and Frequency Range | 40-4000 MHz |
| Coolant | Dry (Convection-Cooled) |
| Operating Position | Any |
| Operating Temperature | -10 to +50 °C (-23 to +4.4 °F) |
| Dimensions | 5.3" L x 2.3" Dia., (135 x 58.42 mm) |
