Bird

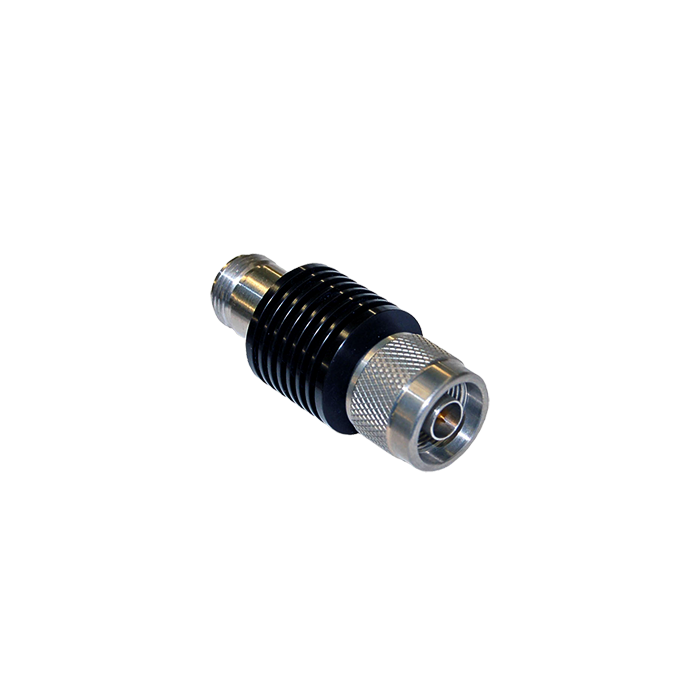

10W, DC-18 GHz, Bi-Directional RF Attenuator

8353A030-10-18, 10 Watt RF Power Attenuator is world renowned for it's high-quality, robust construction and conservative power ratings. The use of non-magnetic materials and plating provide naturally lower inter-modulation performance and safety when used in high magnetic fields.
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Product Brand Name 10 Watt, Bi-Directional Attenuator
Manufacturer Bird
Impedence Ohm 50.0000
Attentuation Value 30dB ± 1.25dB
Power Rating 10 W at 25 °C- Derated Linearly to 1 W @ +125 °C
VSWR and Attenuation Accuracy DC to 4 GHz: 1.20:1 max. 4 GHz to 12.4 GHz :1.30:1 max. 12.4 GHz to 18 GHz: 1.45:1 max.
VSWR and Frequency Range DC to 18 GHz
Operating Position Any
Operating Temperature -65 to 125 °C (-85 to 257 °F)
Connectors N (M/F)
