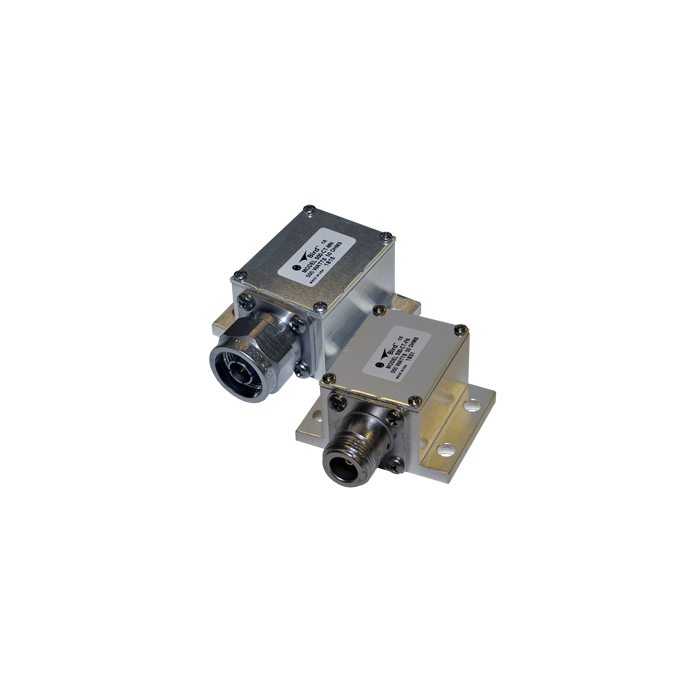

500 Watt, Conduction-Cooled Dry Terminations
500-CT Series, RF Terminations are world renowned for their high-quality, robust construction and conservative power ratings. The use of non-magnetic materials and plating provide safety when used in high magnetic fields such as MRI.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
500-CT Series Specifications
- Rugged Reliability provides years of trouble free use
- Conducts heat to user-supplied heat sink
- Compact size lightweight
- Easy to Use
| Attribute | Value |
|---|---|
| Manufacturer | Bird |
| Housing surface finish | Silver or Tri-Alloy Plated |
| VSWR and Frequency Range | DC to 1 GHz @ 1.15:1 max., 1 - 3 GHz @ 1.30:1 max. |
| Operating Position | Any |
| Cooling Type | Dry (Conduction-Cooled) |
| Mounting Centers | 0.875" |
| Connectors | N, SMA, TNC, 7/16 DIN |
