Bird RF

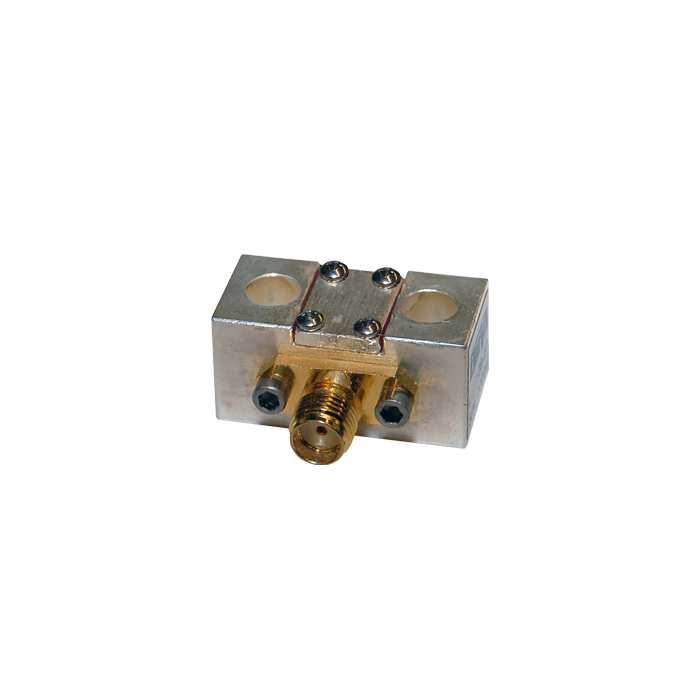

25 Watt, Conduction-Cooled Dry Terminations
25-CT Series, RF Terminations are world renowned for their high-quality, robust construction and conservative power ratings. The use of non-magnetic materials and plating provide safety when used in high magnetic fields such as MRI.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
25-CT Series Specifications
- Rugged Reliability provides years of trouble free use
- Conducts heat to user-supplied heat sink
- Compact size lightweight
- Easy to Use
| Attribute | Value |
|---|---|
| Manufacturer | Bird |
| Housing surface finish | Silver or Tri-Alloy Plated |
| VSWR and Frequency Range | DC - 1 GHz @ 1.15:1 max., 1 GHz - 3 GHz @ 1.25:1 max. |
| Operating Position | Any |
| Cooling Type | Dry (Conduction-Cooled) |
| Base to Connector Center | 0.25" (6.4 mm) |
| Mounting Centers | 0.614" (15.6 mm) |
| Connectors | SMA (M/F) |
| Dimensions | 0.9" x 1.0" x 0.5" (L x W x H), (22.9 x 25.4 x 12.7 mm) |
