Bird RF

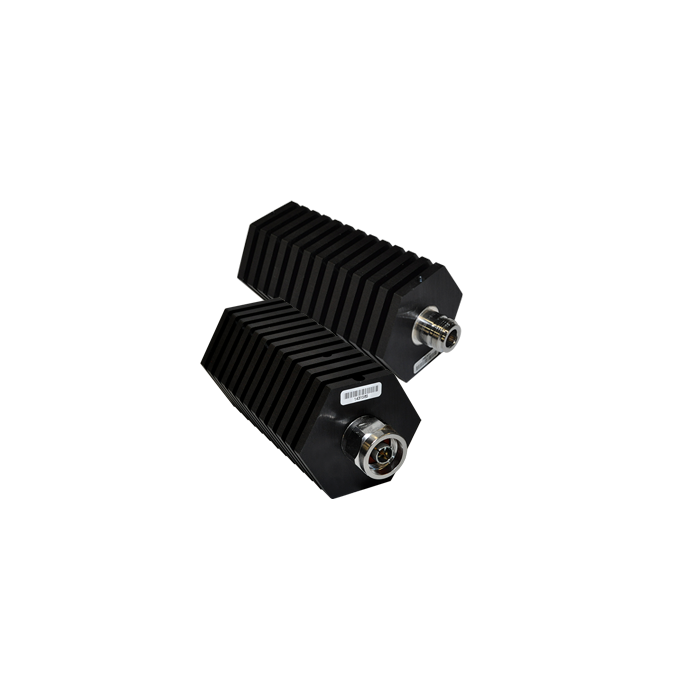

50 Watt, Convection-Cooled Dry Terminations (BeO Free)
50-NT Series, RF Terminations are world renowned for their high-quality, robust construction and conservative power ratings. The use of non-magnetic materials and plating provide safety when used in high magnetic fields such as MRI.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
50-NT Series Specifications
- Wide variety of connectors
- Compact size easily transportable.
- Rugged Reliability provides years of trouble free use
| Attribute | Value |
|---|---|
| Manufacturer | Bird |
| Housing surface finish | Black Anodized |
| VSWR and Frequency Range | DC - 1 GHz @ 1.10:1 max., 1 GHz - 3 GHz @ 1.15:1 max. |
| Operating Position | Any |
| Cooling Type | Dry (Convection-Cooled) |
| Connectors | N (M/F) |
| Temperature Range | -40 to +40 °C |
| Dimensions | 4.7" L x 2.3" Dia., (119.4 x 58.50 mm) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
